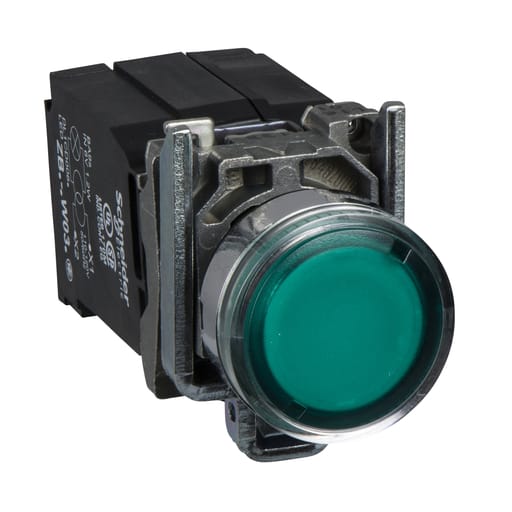

Square-D / Schneider - Square D XB4BW3345 22 mm 240 VAC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110887368
Actuator - GREEN FLUSH,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB4BW3345
Color - Green
Packaging
1 ea
EAN
03389110887365
Part #
247777
Catalog #
XB4BW3345
Commercial reference
XB4BW3345
12-Digit UPC:
389110887368
Actuator:
GREEN FLUSH,SPRING RETURN
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number:
XB4BW3345
Color:
Green
Country of Origin:
Mexico
Depths:
101 mm
ERP_productname:
SQD XB4BW3345 ILLUMINATED PUSH BUTTON, HARMONY XB4, GREEN FLUSH COMPLETE ILLUM PUSHBUTTON ?22 MM SPRING RETURN 1NO+1NC 220...240 V
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Head Type:
Standard
Heights:
47 mm
Size:
3.98 in
Sub Brand:
HARMONY XB4
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Illuminated push-button
Voltage:
220...240 Volt AC 50/60 HZ
Widths:
30 mm
SoneparProductId:
SKU_US_26663144
