Square-D / Schneider - Square D XB4BW3465 22 mm 250 VAC/VDC 14 mA 1NO 1NC Red Round Momentary Flush Illuminated Push Button

Essential specifications

12-Digit UPC - 389110887313
Actuator - RED FLUSH,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB4BW3465
Color - Red

Packaging

1 ea

EAN

03389110887310

Part #

262717

Catalog #

XB4BW3465

Commercial reference

XB4BW3465

12-Digit UPC:

389110887313

Actuator:

RED FLUSH,SPRING RETURN

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB4BW3465

Color:

Red

Country of Origin:

Czechia

Depths:

57 mm

ERP_productname:

SQD XB4BW3465 ILLUMINATED PUSH BUTTON, HARMONY XB4, METAL, FLUSH, RED, 22MM, SPRING RETURN, LT 250V, 1NO+1NC

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

47 mm

Size:

22 MM,30 MM,47 MM,57 MM

Sub Brand:

XB4

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

ILLUMINATED PUSH-BUTTON

Voltage:

<= 250 Volt

Widths:

30 mm

SoneparProductId:

SKU_US_26663115

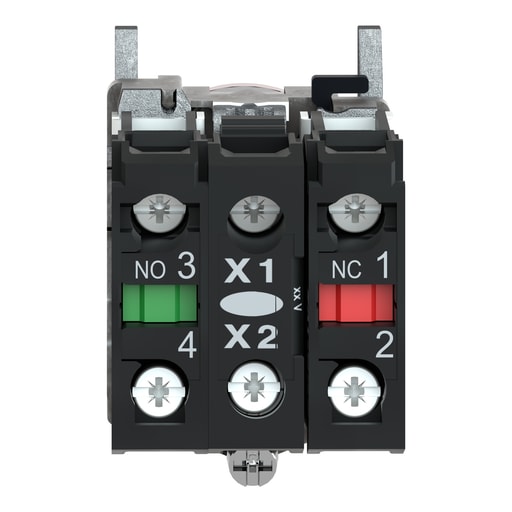

This Harmony XB4 plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBYF2101; ZBYFP2101; ZB4BZ62 - Cross Sell Products: XAPD1501 - Spare Part Products: ZB4BW065
