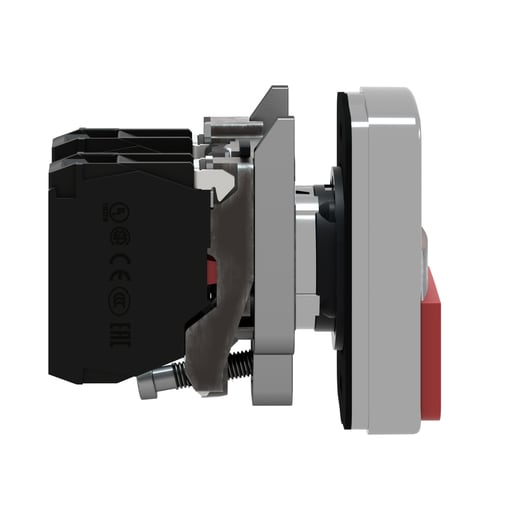

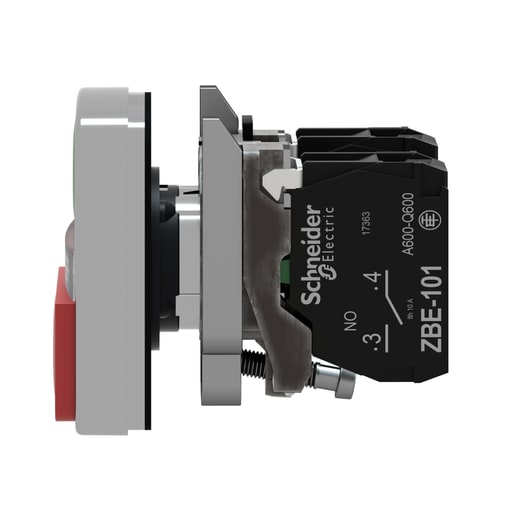

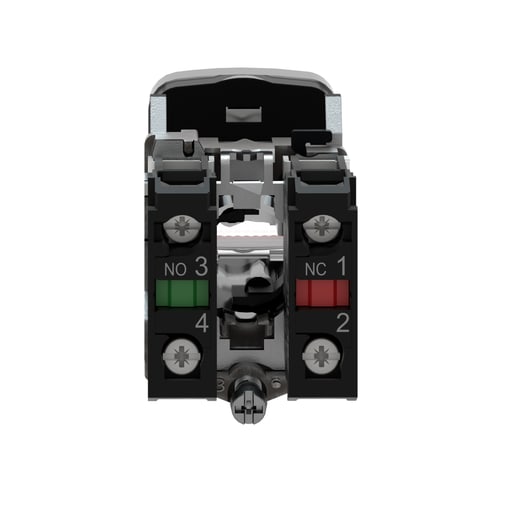

Square-D / Schneider - Square D XB4BW73731B5 ILLUM FLUSH/PROJ TWO BUTTON GREEN
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389119043604
Actuator - Green ''I'' - red ''O'';1 flush - 1 projecting push-buttons - 1 central pilot light
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB4BW73731B5
Color - Green || Red
Packaging
1 ea
EAN
03389119043601
Part #
115135
Catalog #
XB4BW73731B5
Commercial reference
XB4BW73731B5
12-Digit UPC:
389119043604
Actuator:
Green ''I'' - red ''O'';1 flush - 1 projecting push-buttons - 1 central pilot light
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number:
XB4BW73731B5
Color:
Green || Red
Country of Origin:
France
Current:
18 mA
Depths:
59 mm
ERP_productname:
SQD XB4BW73731B5 MTL ILLUM FLUSH/PROJ 2 BTN COMPLETE GRE
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Head Type:
Standard
Heights:
50 mm
Size:
0.87 in
Sub Brand:
XB4
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Illuminated double-headed push-button
Voltage:
24 Volt AC/DC 50/60 HZ
Widths:
30 mm
SoneparProductId:
SKU_US_31791261
