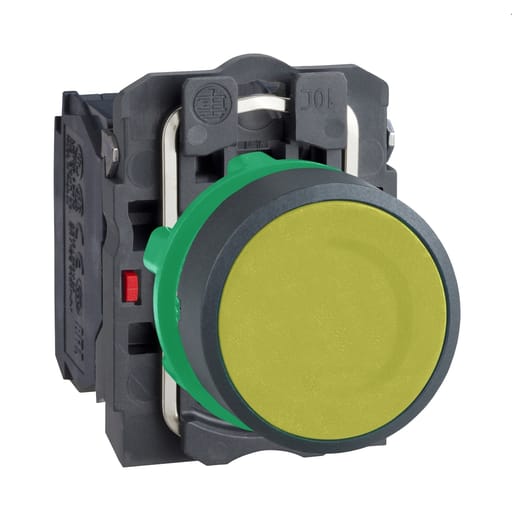

Square-D / Schneider - Square D XB5AA55 22MM NON-ILUM YELLOW PUSHBUTTON

Essential specifications

12-Digit UPC - 785901624264
Actuator - SPRING RETURN,YELLOW FLUSH, UNMARKED
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AA55
Color - Yellow

Packaging

1 ea

EAN

03389110842258

Part #

131329

Catalog #

XB5AA55

Commercial reference

XB5AA55

12-Digit UPC:

785901624264

Actuator:

SPRING RETURN,YELLOW FLUSH, UNMARKED

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AA55

Color:

Yellow

Country of Origin:

USA

Depths:

52 mm

ERP_productname:

SQD XB5AA55 22MM NON-ILUM YELLOW PUSHBUTTON W/BLOCK

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

42 mm

Size:

22 MM,30 MM,42 MM,52 MM

Sub Brand:

HARMONY XB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

PUSH-BUTTON

Widths:

30 mm

SoneparProductId:

SKU_US_30533509

This Harmony XB5, flush modular yellow push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: XBH1AA0R4; XB5KS2B4; ZBY9W2B330 - Related Products: ZB5AA5; ZB5AZ105 - Compatible Products: ZBY2101; ZBYLEG503001 - Spare Part Products: ZB5AA5; ZBE101; ZB5AZ009
