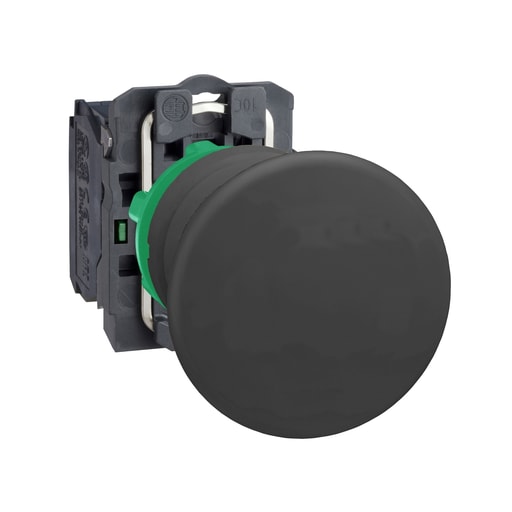

Square-D / Schneider - Square D XB5AC21 22 mm 600 VAC 1.2 Amp 1NO Black Round Momentary Mushroom Head Non-Illuminated Push Button

Essential specifications

12-Digit UPC - 389110134455
Actuator - BLACK MUSHROOM .. 40 MM,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AC21
Color - Black

Packaging

1 ea

EAN

03389110134452

Part #

216642

Catalog #

XB5AC21

Commercial reference

XB5AC21

12-Digit UPC:

389110134455

Actuator:

BLACK MUSHROOM .. 40 MM,SPRING RETURN

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AC21

Color:

Black

Country of Origin:

Czechia

Depths:

82 mm

ERP_productname:

SQD XB5AC21 SELECTOR SWITCH 230VAC 2AMP XB5 +OPTIONS

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

43 mm

Size:

3.23 in

Sub Brand:

XB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1-FASTON CONNECTORS 1 X 6.35 MM-FASTON CONNECTORS 2 X 2.8 MM

Type:

Push-button

Widths:

40 mm

SoneparProductId:

SKU_US_26661877

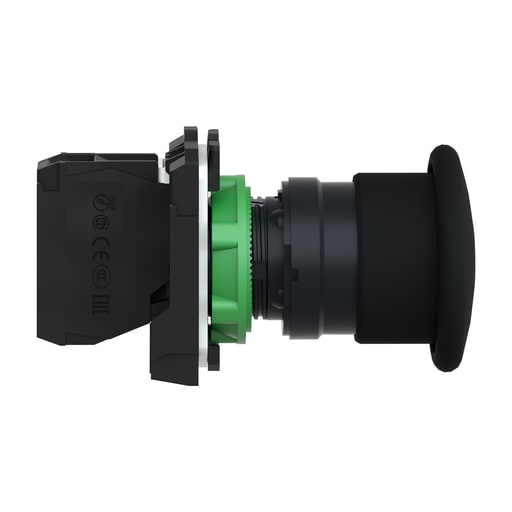

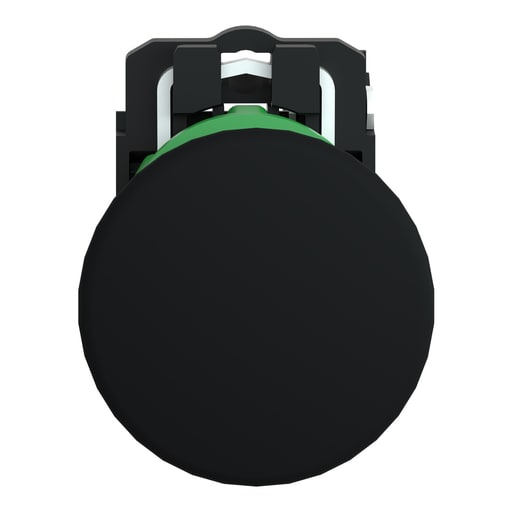

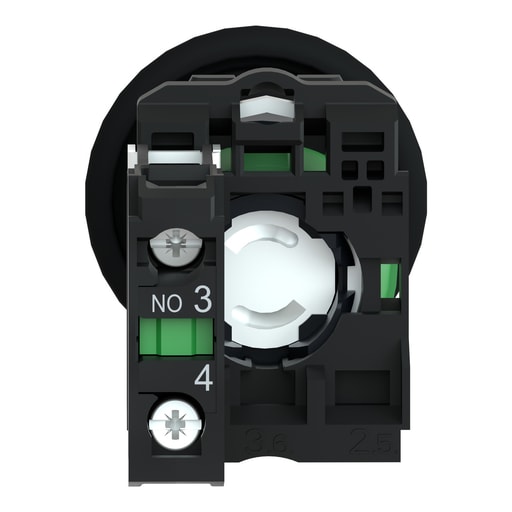

This Harmony XB5, 40mm mushroom head modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This 40mm mushroom shaped push button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBY2101; ZB5AZ905 - Spare Part Products: ZB5AZ101; ZB5AC2
