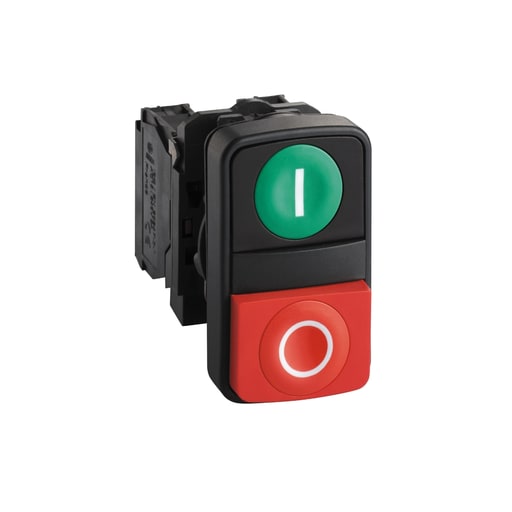

Square-D / Schneider - Square D XB5AL73415 Green/Red Plastic Flush/Projecting 2-Head Push Button

Essential specifications

12-Digit UPC - 389119043512
Actuator - Green ''I'' - red ''O'';1 flush - 1 projecting push-buttons
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AL73415
Color - Green || Red

Packaging

1 ea

EAN

03389119043519

Part #

141361

Catalog #

XB5AL73415

Commercial reference

XB5AL73415

12-Digit UPC:

389119043512

Actuator:

Green ''I'' - red ''O'';1 flush - 1 projecting push-buttons

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AL73415

Color:

Green || Red

Country of Origin:

France

Depths:

59 mm

ERP_productname:

SQD XB5AL73415 PLASTIC FLUSH/PROJ TWO BUTTON COMPLETE GREEN

Enclosure:

NEMA 4X/13

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

50 mm

Size:

2.32 in

Sub Brand:

XB5

Tc Connection:

SCREW CLAMP

Type:

Double-headed push-button

Widths:

30 mm

SoneparProductId:

SKU_US_70000060

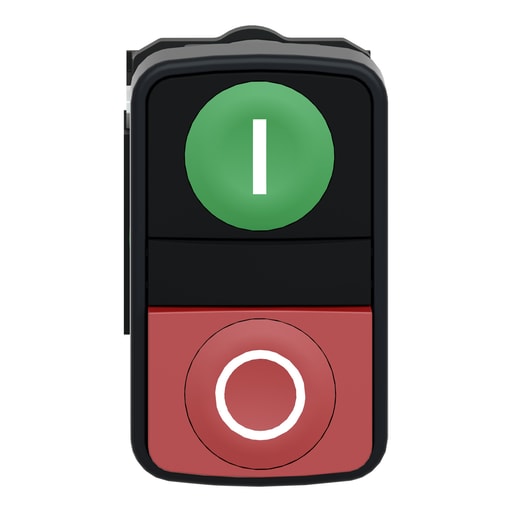

This Harmony XB5, double-headed modular push button has 1 red and 1 green button, operates with a spring return mechanism and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: NSYPLM43G; XALK84W3BE - Related Products: ZB5AL7341; ZB5AZ105 - Compatible Products: ZB5AZ905; ZBYLEG503001; ZBA710 - Spare Part Products: ZB5AL7341; ZB5AZ105; ZBE101; ZB5AZ009
