Square-D / Schneider - Square D XB5AS9445 22 mm 600 VAC 1.2 Amp 1NO 1NC Round Trigger Action Key Release Non-Illuminated Push Button

Essential specifications

12-Digit UPC - 389110903730
Actuator - RED MUSHROOM .. 40 MM, UNMARKED,TRIGGER ACTION AND MECHANICAL LATCHING
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AS9445
Color - Red

Packaging

1 ea

EAN

03389110903737

Part #

129737

Catalog #

XB5AS9445

Commercial reference

XB5AS9445

12-Digit UPC:

389110903730

Actuator:

RED MUSHROOM .. 40 MM, UNMARKED,TRIGGER ACTION AND MECHANICAL LATCHING

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AS9445

Color:

Red

Country of Origin:

Czechia

Depths:

100 mm

ERP_productname:

SQD XB5AS9445 PUSHBUTTON 230VAC 2AMP XB5 +OPTIONS

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

43 mm

Size:

3.94 in

Sub Brand:

XB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

Emergency stop push-button;Emergency switching off push-button

Widths:

40 mm

SoneparProductId:

SKU_US_26661700

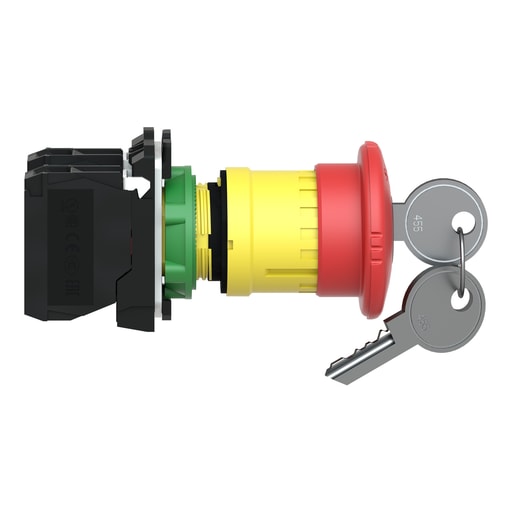

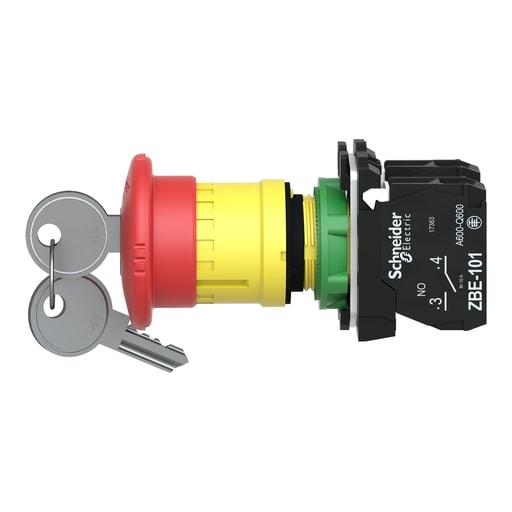

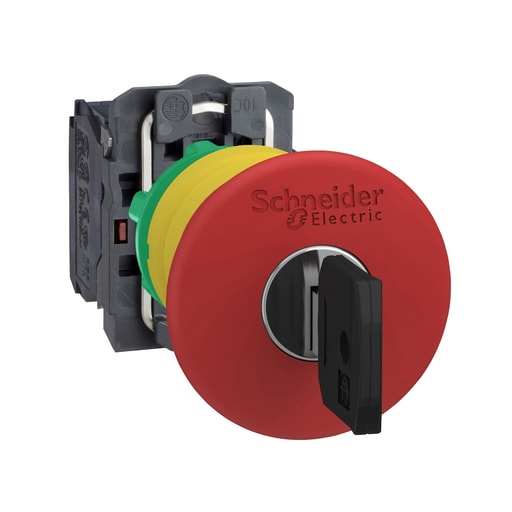

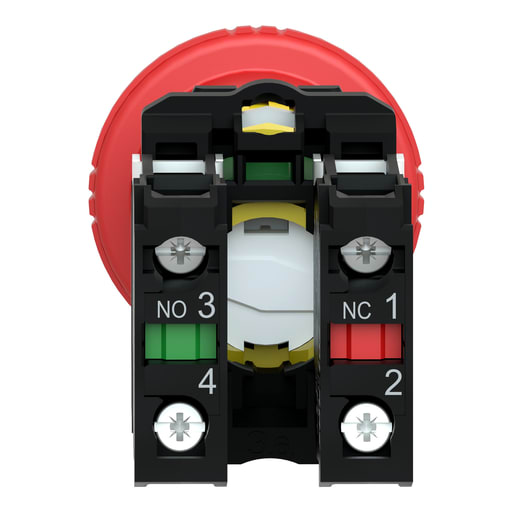

This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBY9320; ZB5AZ905 - Spare Part Products: ZB5AZ105; ZB5AS944
