Square-D / Schneider - Square D XB5AT842 22 mm 600 VAC 1.2 Amp 1NC Round Trigger Action Push-Pull Non-Illuminated Push Button

Essential specifications

12-Digit UPC - 606480623687
Actuator - LATCHING,RED MUSHROOM .. 40 MM, UNMARKED
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AT842
Color - Red

Packaging

1 ea

EAN

03606480623684

Part #

178208

Catalog #

XB5AT842

Commercial reference

XB5AT842

12-Digit UPC:

606480623687

Actuator:

LATCHING,RED MUSHROOM .. 40 MM, UNMARKED

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AT842

Color:

Red

Country of Origin:

Czechia

Depths:

82 mm

ERP_productname:

SQD XB5AT842 PUSHBUTTON 230VAC 2AMP XB5 +OPTIONS

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

43 mm

Size:

22 MM,40 MM,43 MM,82 MM

Sub Brand:

XB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

EMERGENCY STOP PUSH-BUTTON-EMERGENCY SWITCHING OFF PUSH-BUTTON

Widths:

40 mm

SoneparProductId:

SKU_US_25563559

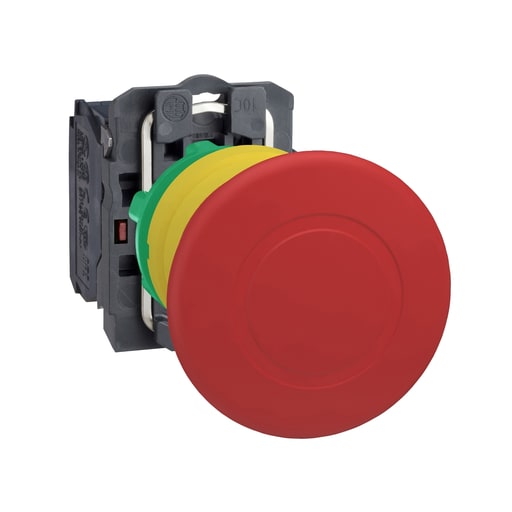

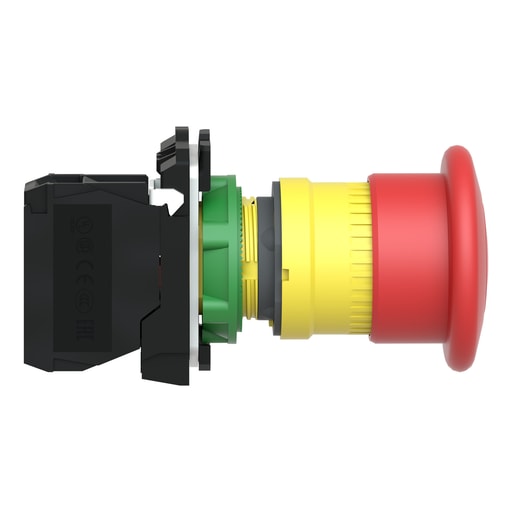

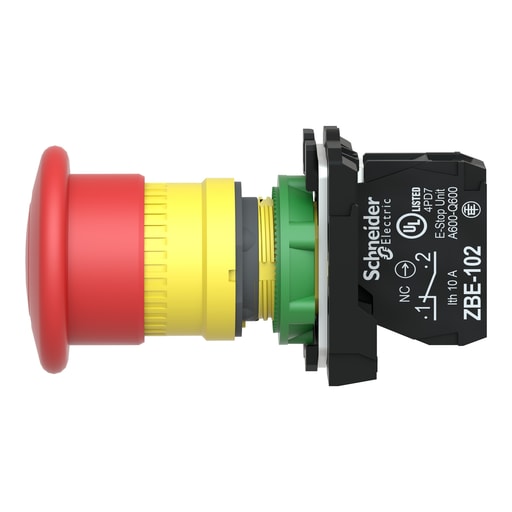

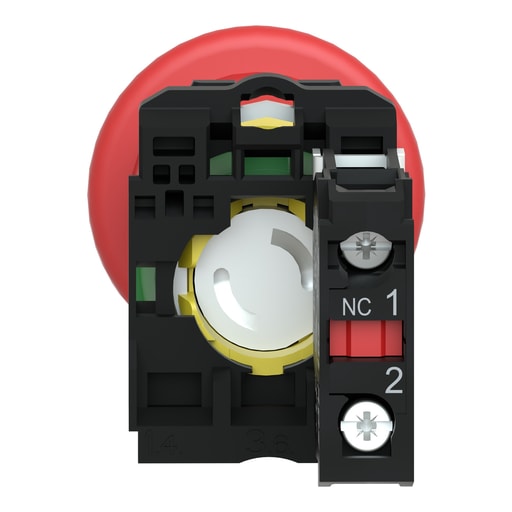

This Harmony XB5, emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched push-pull mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBY9320; ZB5AZ905 - Spare Part Products: ZB5AZ102; ZB5AT84
