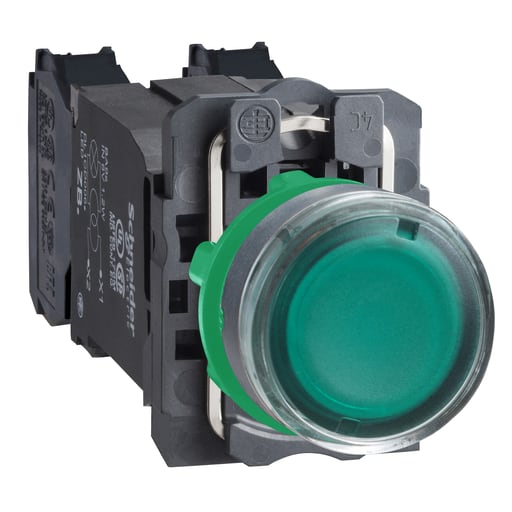

Square-D / Schneider - Square D XB5AW3335 22 mm 120 VAC 14 mA 1NO 1NC Green Round Momentary Flush Illuminated Push Button
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901384212
Actuator - GREEN FLUSH, UNMARKED,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AW3335
Color - Green
Packaging
1 ea
EAN
03389110904093
Part #
211880
Catalog #
XB5AW3335
Commercial reference
XB5AW3335
12-Digit UPC:
785901384212
Actuator:
GREEN FLUSH, UNMARKED,SPRING RETURN
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number:
XB5AW3335
Color:
Green
Country of Origin:
Czech Republic
Depths:
3.98 Inch
ERP_productname:
SQD XB5AW3335 GREEN FLUSH COMPLETE ILLUM PUSHBUTTON 22 SPRING RETURN 1NO+1NC 110...120V
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Harmony
Heights:
1.65 Inch
Size:
101 MM,22 MM,30 MM,42 MM
Sub Brand:
XB5
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
ILLUMINATED PUSH-BUTTON
Voltage:
110...120 Volt AC 50/60 HZ
Widths:
1.18 in
SoneparProductId:
SKU_US_26661618
