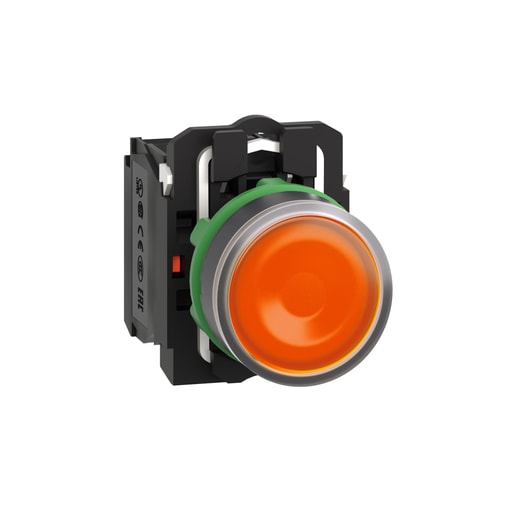

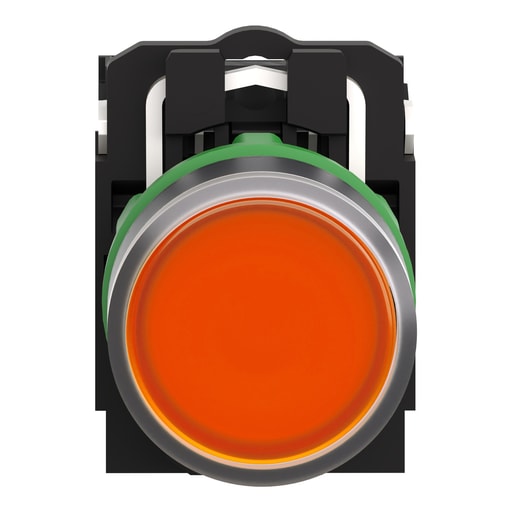

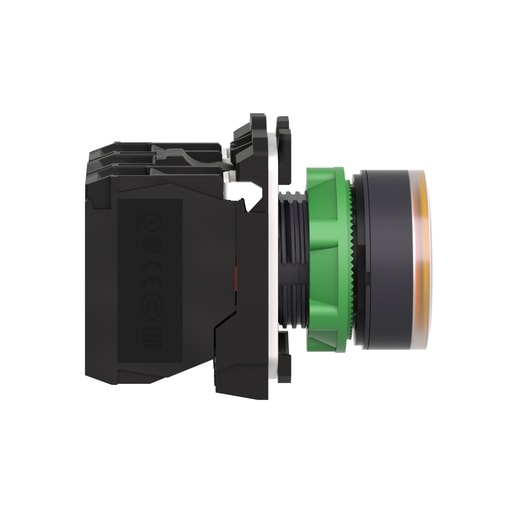

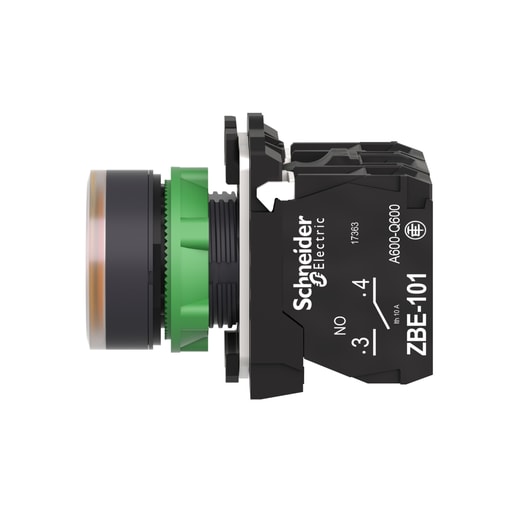

Square-D / Schneider - Square D XB5AW35B5 22 mm 24 VAC/VDC 18 mA 1NO 1NC Yellow Round Momentary Flush Illuminated Push Button

Essential specifications

12-Digit UPC - 389110904188
Actuator - ORANGE FLUSH, UNMARKED,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AW35B5
Color - Orange

Packaging

1 ea

EAN

03389110904185

Part #

172400

Catalog #

XB5AW35B5

Commercial reference

XB5AW35B5

12-Digit UPC:

389110904188

Actuator:

ORANGE FLUSH, UNMARKED,SPRING RETURN

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AW35B5

Color:

Orange

Country of Origin:

USA

Current:

18 mA

Depths:

57 mm

ERP_productname:

SQD XB5AW35B5 ILLUMINATED PUSH BUTTON, PLASTIC, FLUSH, ORANGE, 22, SPRING RETURN, 24 V AC/DC, 1 NO + 1 NC

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

42 mm

Size:

2.24 in

Sub Brand:

XB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Illuminated push-button

Voltage:

24 Volt AC/DC 50/60 HZ

Widths:

30 mm

SoneparProductId:

SKU_US_26662446

This Harmony XB5, illuminated modular orange push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBY2101; ZB5AZ905 - Spare Part Products: ZB5AW0B15; ZB5AW353
