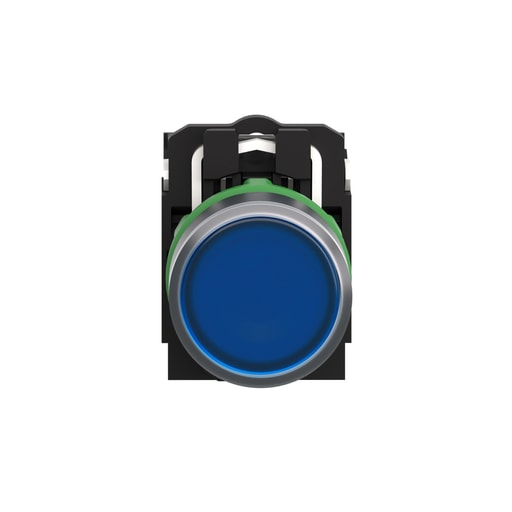

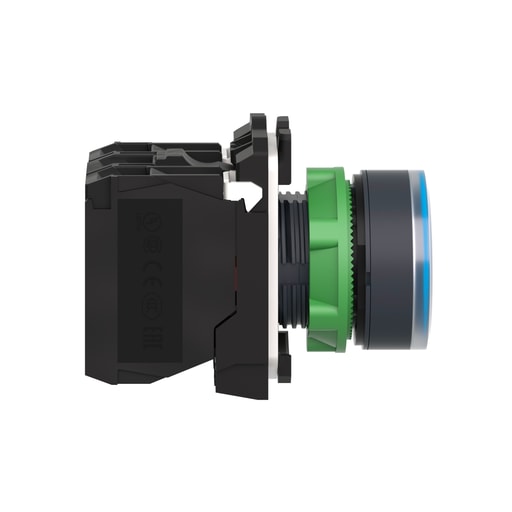

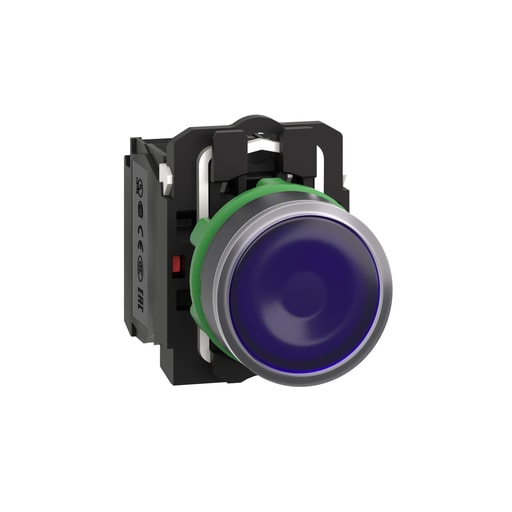

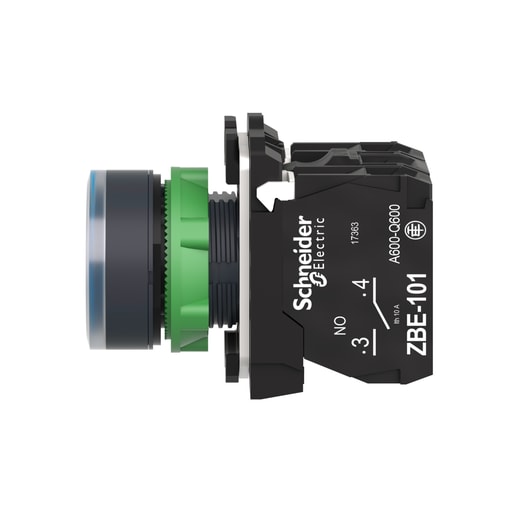

Square-D / Schneider - Square D XB5AW36B5 22 mm 24 VAC/VDC 18 mA 1NO 1NC Blue Round Momentary Flush Illuminated Push Button

Essential specifications

12-Digit UPC - 389110136947
Actuator - BLUE FLUSH, UNMARKED,SPRING RETURN
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AW36B5
Color - Blue

Packaging

1 ea

EAN

03389110136944

Part #

262296

Catalog #

XB5AW36B5

Commercial reference

XB5AW36B5

12-Digit UPC:

389110136947

Actuator:

BLUE FLUSH, UNMARKED,SPRING RETURN

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AW36B5

Color:

Blue

Country of Origin:

France

Current:

18 mA

Depths:

57 mm

ERP_productname:

SQD XB5AW36B5 ILLUMINATED PUSH BUTTON, HARMONY XB5, PLASTIC, BLUE FLUSH, 22MM, UNIVERSAL LED, PLAIN LENS, 1NO + 1NC, 24V AC DC

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

42 mm

Size:

2.24 in

Sub Brand:

HARMONY XB5

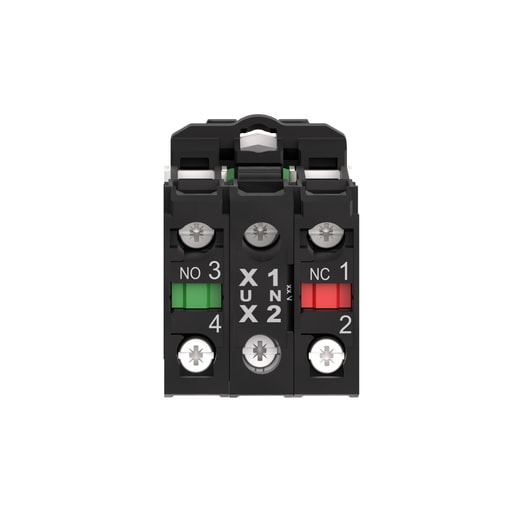

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Illuminated push-button

Voltage:

24 Volt AC/DC 50/60 HZ

Widths:

30 mm

SoneparProductId:

SKU_US_26662379

This Harmony XB5, illuminated modular blue push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBY2101; ZB5AZ905 - Spare Part Products: ZB5AW0B15; ZB5AW363
