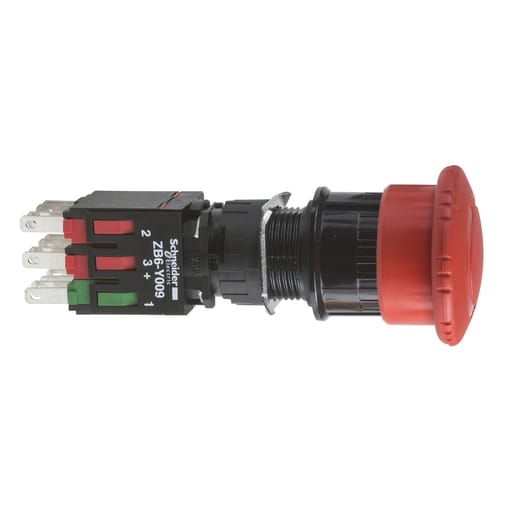

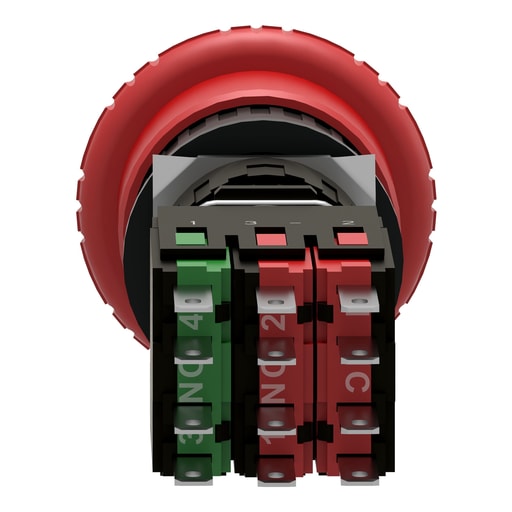

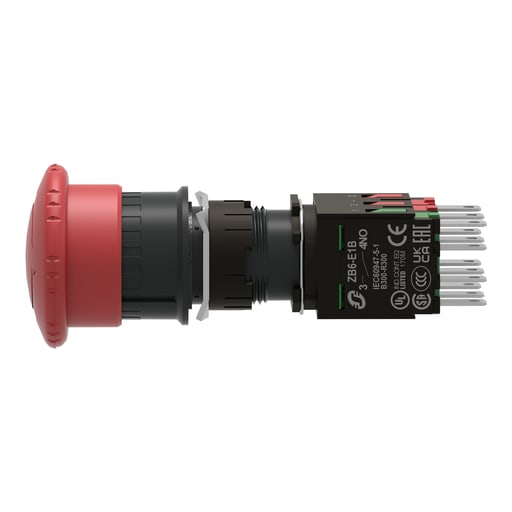

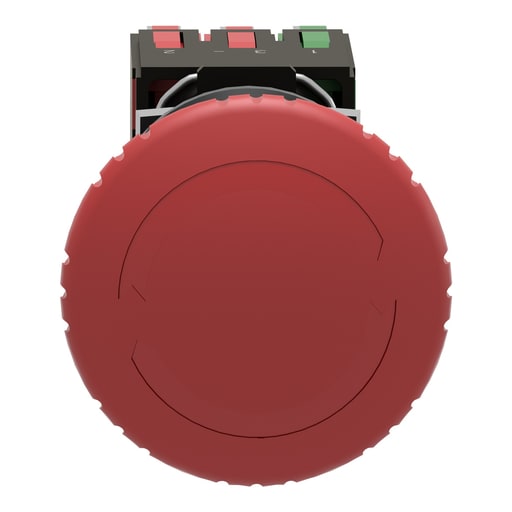

Square-D / Schneider - Square D XB6AS8342B 30 mm 250 VAC 1.5 Amp 1NC Red Mushroom Head Push Button

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389119018664

  • Actuator - RED MUSHROOM .. 30 MM, UNMARKED,TRIGGER ACTION AND MECHANICAL LATCHING

  • Amperage - 3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1

  • Catalog Number - XB6AS8342B

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

03389119018661

Part #

223229

Catalog #

XB6AS8342B

Commercial reference

XB6AS8342B

12-Digit UPC:

389119018664

Actuator:

RED MUSHROOM .. 30 MM, UNMARKED,TRIGGER ACTION AND MECHANICAL LATCHING

Amperage:

3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1

Catalog Number:

XB6AS8342B

Country of Origin:

USA

Depths:

77 mm

ERP_productname:

SQD XB6AS8342B PUSHBUTTON 250VAC 1.5AMP XB6 +OPTIONS

Enclosure:

NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94

Family Brand Name:

Schneider Electric

Heights:

30 mm

Size:

16 MM,30 MM,30 MM,77 MM

Sub Brand:

XB6

Tc Connection:

FASTON CONNECTORS 2.8 X 0.5 MM

Type:

COMPLETE EMERGENCY STOP PUSH-BUTTON

Voltage:

240 VAC

Widths:

30 mm

SoneparProductId:

SKU_US_26270048

This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 16mm diameter cut-outs and connected with simple faston connectors It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments High performance International standards & certifications ( Marine certification, IP66 IP69 IP69K) Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
