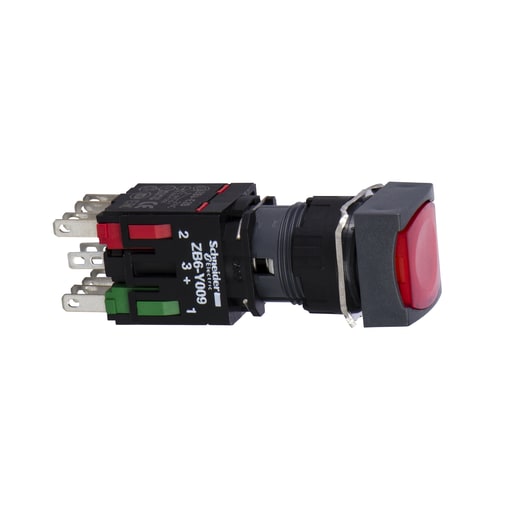

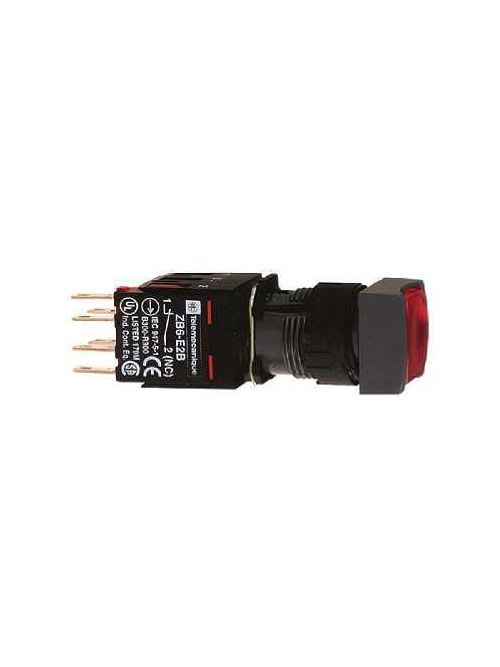

Square-D / Schneider - Square D XB6CF4B5B 16 mm 240 VAC 1.5 Amp 1NO 1NC Red Square Flush/Maintained Illuminated Push Button
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901357056
Actuator - LATCHING,RED FLUSH, UNMARKED
Amperage - 3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Catalog Number - XB6CF4B5B
Country of Origin - Mexico
Packaging
1 ea
EAN
03389110764024
Part #
183707
Catalog #
XB6CF4B5B
Commercial reference
XB6CF4B5B
12-Digit UPC:
785901357056
Actuator:
LATCHING,RED FLUSH, UNMARKED
Amperage:
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Catalog Number:
XB6CF4B5B
Country of Origin:
Mexico
Current:
15 mA
Depths:
57 mm
ERP_productname:
SQD XB6CF4B5B PUSHBUTTON 240VAC 1.5AMP XB6 +OPTIONS
Enclosure:
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Family Brand Name:
Schneider Electric
Heights:
18 mm
Size:
2.24 in
Sub Brand:
XB6
Tc Connection:
FASTON CONNECTORS 2.8 X 0.5 MM
Type:
Complete illuminated push-button
Voltage:
12...24 Volt AC/DC
Widths:
18 mm
SoneparProductId:
SKU_US_26415427
