Square-D / Schneider - Square D XB6DF4B5B 16 mm 240 VAC 1.5 Amp 1NO 1NC Red Rectangular Flush/Maintained Illuminated Push Button

Essential specifications

12-Digit UPC - 785901357773
Actuator - LATCHING,RED FLUSH, UNMARKED
Amperage - 3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Catalog Number - XB6DF4B5B
Country of Origin - USA

Packaging

1 ea

EAN

03389110764031

Part #

445186

Catalog #

XB6DF4B5B

Commercial reference

XB6DF4B5B

12-Digit UPC:

785901357773

Actuator:

LATCHING,RED FLUSH, UNMARKED

Amperage:

3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1

Catalog Number:

XB6DF4B5B

Country of Origin:

USA

Current:

15 mA

Depths:

57 mm

ERP_productname:

SQD XB6DF4B5B COMPLETE ILLUMINATED PUSH BUTTON, HARMONY XB6, RED RECTANGULAR FLUSH, 16MM, LATCHING, 1NO + 1NC, 12...24V

Enclosure:

NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94

Family Brand Name:

Schneider Electric

Heights:

18 mm

Size:

2.24 in

Sub Brand:

XB6

Tc Connection:

FASTON CONNECTORS 2.8 X 0.5 MM

Type:

Complete illuminated push-button

Voltage:

12...24 Volt AC/DC

Widths:

24 mm

SoneparProductId:

SKU_US_26416461

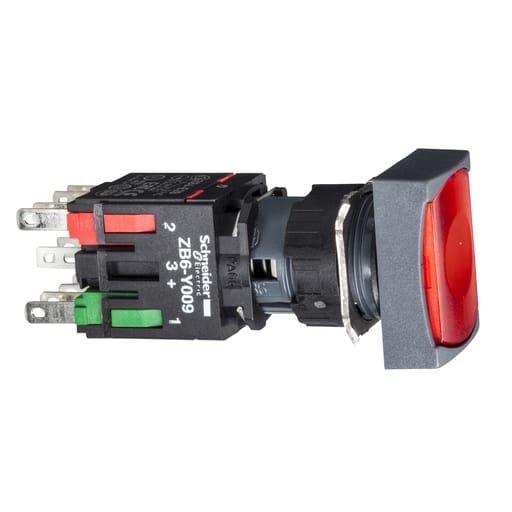

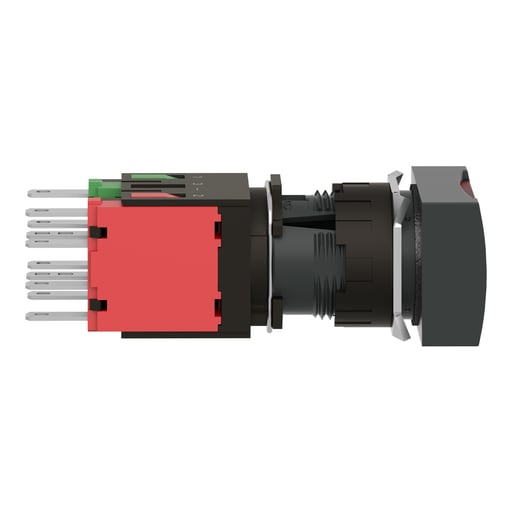

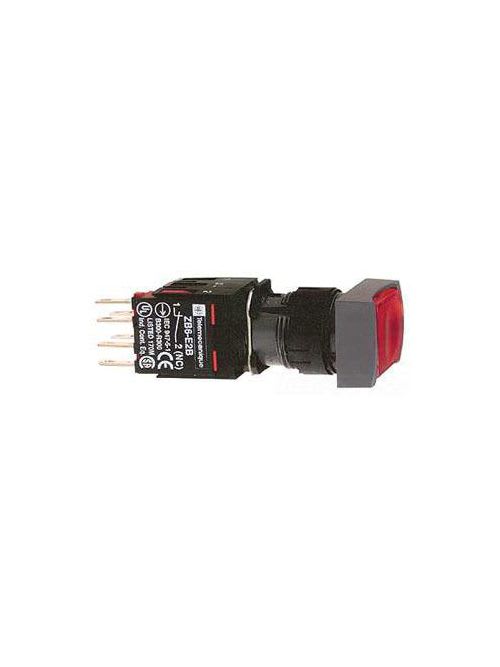

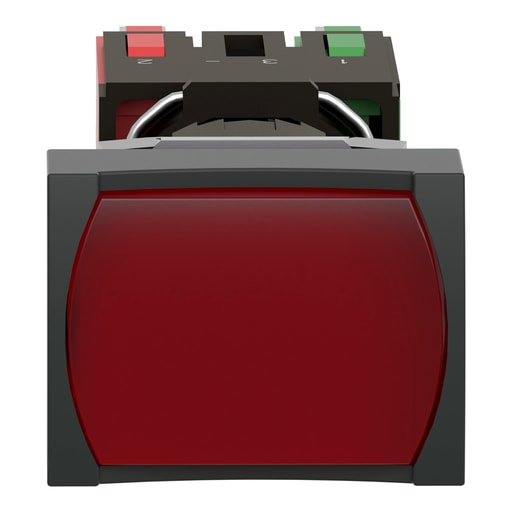

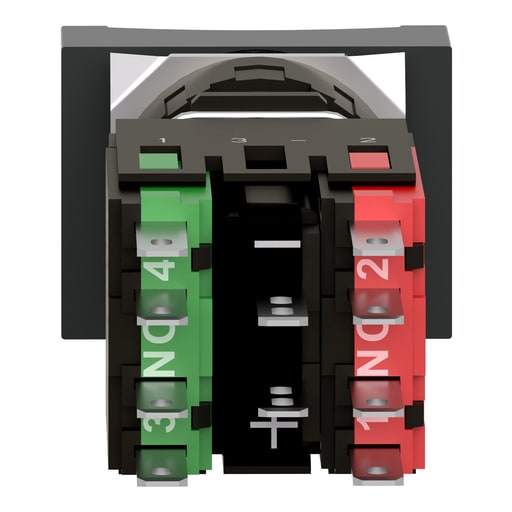

This Harmony XB6 red, complete illuminated push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a rectangular head shape, with a flush latching push and is supplied with an integral LED. It features 1 NO + 1 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: XB6DV3BB; XB6AS8349B - Related Products: ZB6DF4 - Compatible Products: ZB5AZ905; ZB6YD001 - Spare Part Products: ZB6DF4
