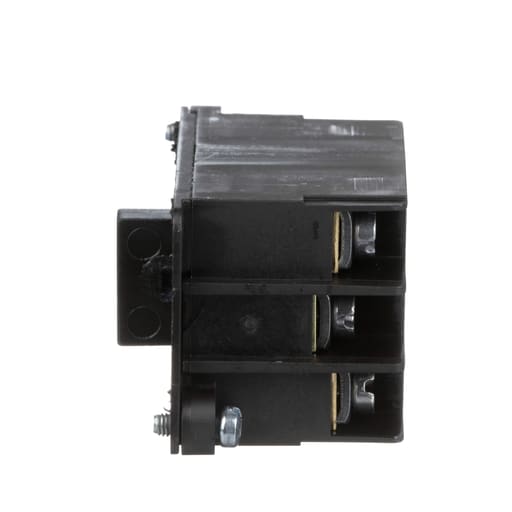

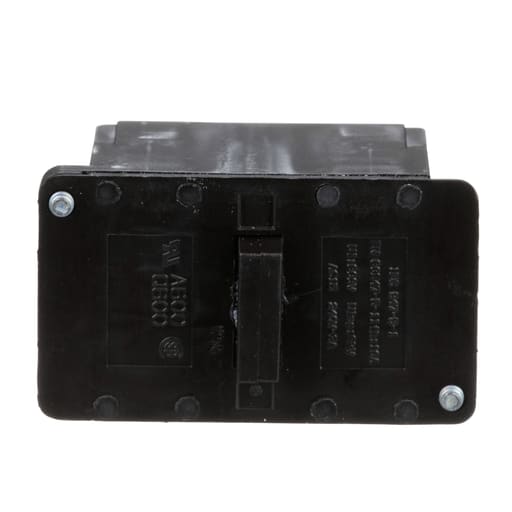

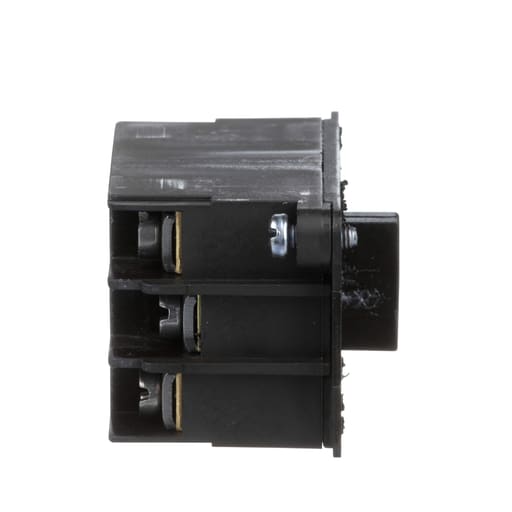

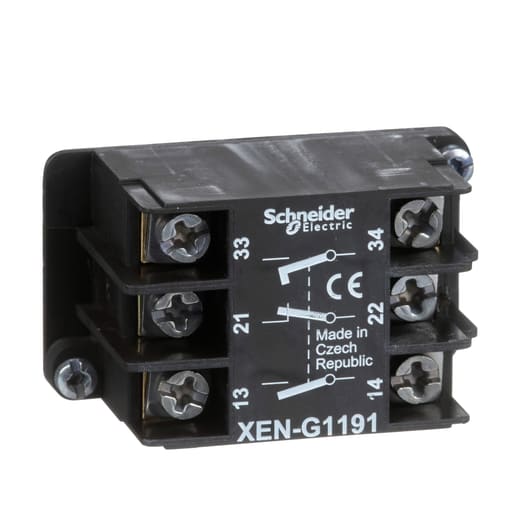

Square-D / Schneider - Square D XENG1191 240 VAC 3 Amp 2NO 1NC Pendant Station Contact Block

Essential specifications

12-Digit UPC - 389110645708
Amperage - 10 Amp
Applications - Control circuit;2-speed;XACA;XACA9...head
Catalog Number - XENG1191
Country of Origin - Czechia

Packaging

1 ea

EAN

03389110645705

Part #

130413

Catalog #

XENG1191

Commercial reference

XENG1191

12-Digit UPC:

389110645708

Amperage:

10 Amp

Applications:

Control circuit;2-speed;XACA;XACA9...head

Catalog Number:

XENG1191

Country of Origin:

Czechia

ERP_productname:

SQD XENG1191 CONTACT BLK INC-2NO

Family Brand Name:

Schneider Electric

Sub Brand:

XENG

Tc Connection:

SCREW CLAMP TERMINALS

Type:

Single;Contact block;Spring return

Wattage:

40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C

SoneparProductId:

SKU_US_69988491

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user.s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZB2BE101; ZB2BE102; XENG1491; XENG3781 - Cross Sell Products: XACB085
