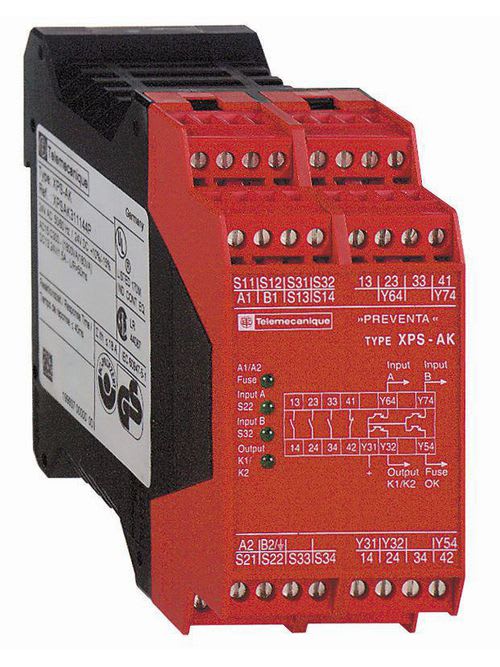

Square-D / Schneider - Square D XPSAK311144P 24 VDC 3NO 4-LED Display Safety Relay Module

12-Digit UPC:

785901291657

Applications:

FOR EMERGENCY STOP, SWITCH, SENSING MAT/EDGES OR SAFETY LIGHT CURTAIN MONITORING,MONITORING OF A MOVABLE GUARD ASSOCIATED WITH 2 SWITCHES AND AUTOMATIC START-MONITORING OF ELECTRO-SENSITIVE PROTECTION EQUIPMENT (ESPE)-SENSING MAT AND EDGES MONITORING-EMERGENCY STOP MONITORING 1-CHANNEL WIRING-EMERGENCY STOP WITH 2 NC CONTACTS MONITORING 2-CHANNEL WIRING-MULTIPLE EMERGENCY STOP MONITORING 2-CHANNEL WIRING-PROXIMITY SENSOR MONITORING-MONITORING OF A MOVABLE GUARD

Catalog Number:

XPSAK311144P

Country of Origin:

Indonesia

ERP_productname:

SQD XPSAK311144P 5A 300V SFTY RELAY DISCONTINUED

Family Brand Name:

Preventa

Sub Brand:

PREVENTA

Tc Connection:

CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA. SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA. SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1.5 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1.5 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL

Type:

PREVENTA SAFETY MODULE

SoneparProductId:

SKU_US_26345669
