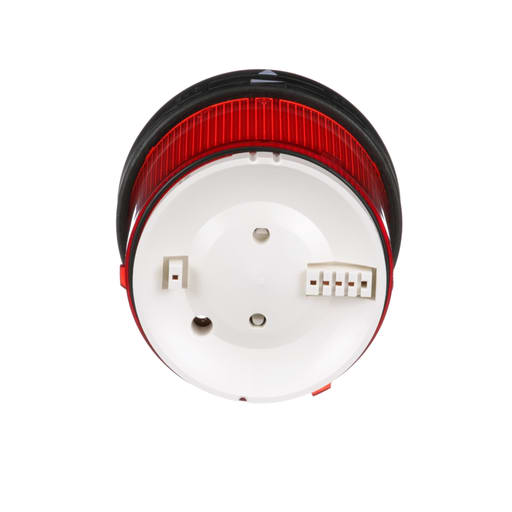

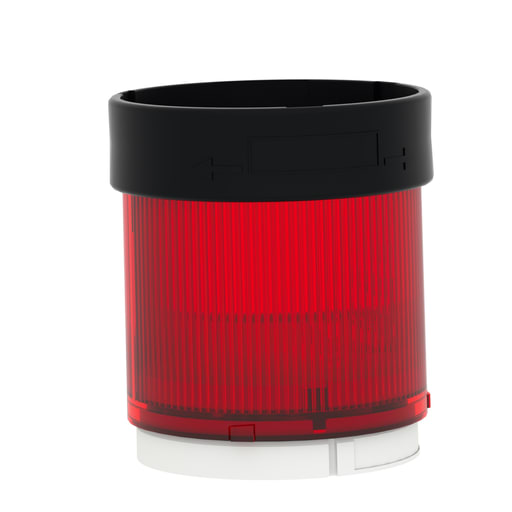

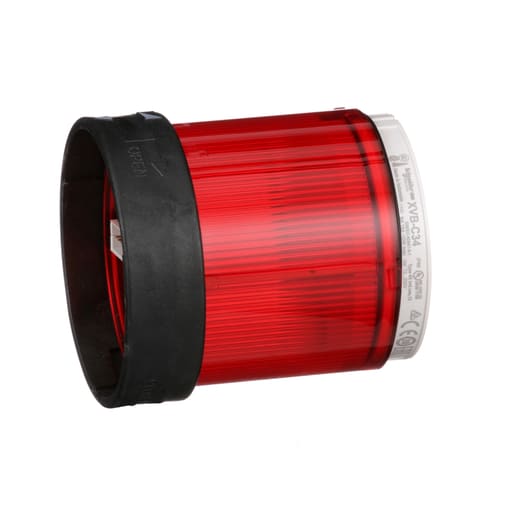

Square-D / Schneider - Square D XVBC34 70 mm 250 VAC 30 mA 10 W Red Polycarbonate Steady LED Beacon Lens Unit

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110845078

  • Catalog Number - XVBC34

  • Country of Origin - USA

  • ERP_productname - SQD XVBC34 RED STEADY 12-240

  • Enclosure - IP65 ON FIXING BASE XVBZ0. IEC 60529-IP66 ON BASE UNIT IEC 60529,NEMA 4X UL 508 INDOOR)

Packaging

  • 1 ea

EAN

03389110845075

Part #

134217

Catalog #

XVBC34

Commercial reference

XVBC34

12-Digit UPC:

389110845078

Catalog Number:

XVBC34

Country of Origin:

USA

ERP_productname:

SQD XVBC34 RED STEADY 12-240

Enclosure:

IP65 ON FIXING BASE XVBZ0. IEC 60529-IP66 ON BASE UNIT IEC 60529,NEMA 4X UL 508 INDOOR)

Family Brand Name:

Schneider Electric

Heights:

63 mm

Lens Color:

BULB NOT INCLUDED, RED

Material:

Polycarbonate

Size:

70 MM,70 MM,70 MM

Sub Brand:

XVBC

Type:

ILLUMINATED UNIT,INDICATOR BANK

Voltage:

0.85...1.1 UN IEC 60947-5-1,<= 250 Volt

Wattage:

7 Watt

Widths:

70 mm

SoneparProductId:

SKU_US_69990401

Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: DL1BDB4; DL1BDG4; XVBC9B; XVBC21; XVBC9M; XVBZ02 - Cross Sell Products: XVBC33; XVBC35; XVBC36; XVBC37; XVBC38
