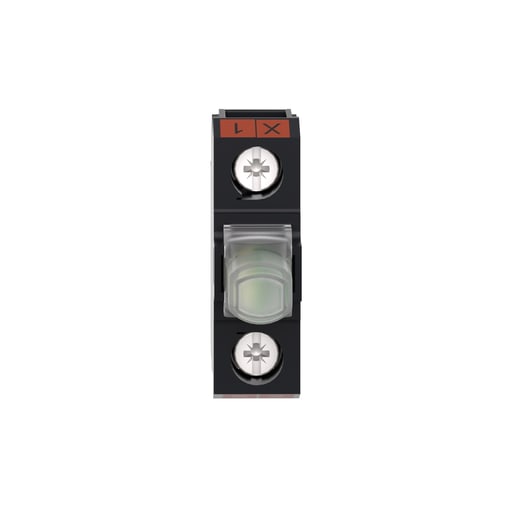

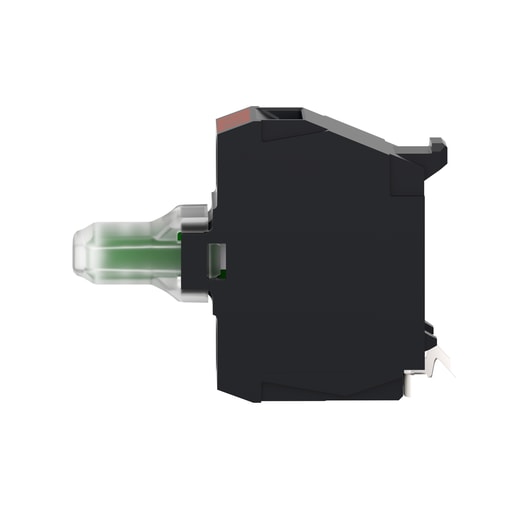

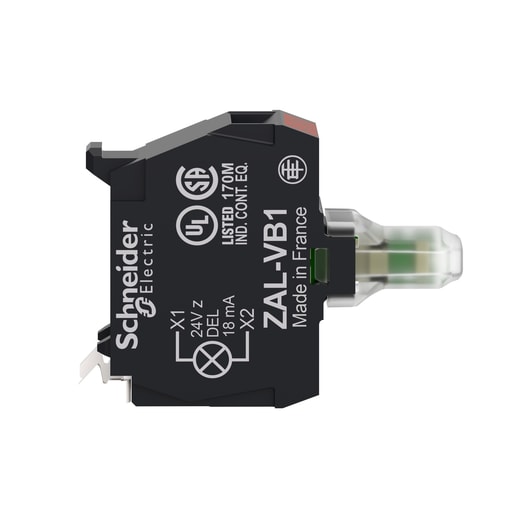

Square-D / Schneider - Square D ZALVB4 22 mm 24 VAC/VDC Red Protected LED Light Block

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110115126

  • Applications - For XB5 . 22 mm control and signalling units

  • Catalog Number - ZALVB4

  • Country of Origin - France

  • Current - 18 mA

Packaging

  • 1 ea

EAN

03389110115123

Part #

157723

Catalog #

ZALVB4

Commercial reference

ZALVB4

12-Digit UPC:

389110115126

Applications:

For XB5 . 22 mm control and signalling units

Catalog Number:

ZALVB4

Country of Origin:

France

Current:

18 mA

ERP_productname:

SQD ZALVB4 LIGHT MODULE W/PROTECTED LED 24V RED

Enclosure:

IP20

Family Brand Name:

Schneider Electric

Sub Brand:

ZALV

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Light block

Voltage:

24 VAC//VDC

SoneparProductId:

SKU_US_26662907

This red light block with integral LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
