Square-D / Schneider - Square D ZB4BVJ3 22 mm 12 VAC/VDC Green Push Button Light Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901545156
Catalog Number - ZB4BVJ3
Color - Green
Country of Origin - France
Current - 18 mA
Packaging
1 ea
EAN
03389110069778
Part #
107632
Catalog #
ZB4BVJ3
Commercial reference
ZB4BVJ3
12-Digit UPC:
785901545156
Catalog Number:
ZB4BVJ3
Color:
Green
Country of Origin:
France
Current:
18 mA
ERP_productname:
SQD ZB4BVJ3 12V PROTECTED LED LIGHT MODULE/GREEN W/BASE DISCONTINUED
Family Brand Name:
Schneider Electric
Size:
30 MM,37 MM,47 MM
Sub Brand:
ZB4
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END
Type:
Complete body/light block assembly
Voltage:
12 Volt AC/DC 50/60 HZ
SoneparProductId:
SKU_US_26461292

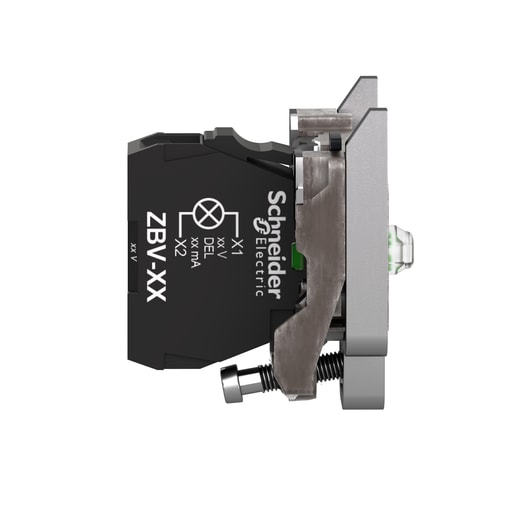

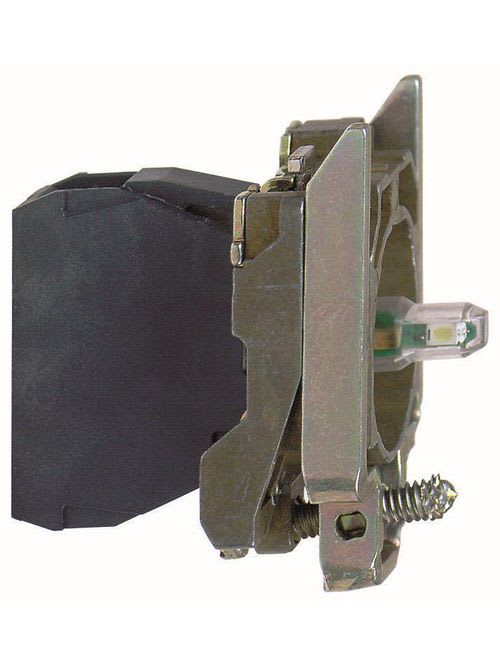

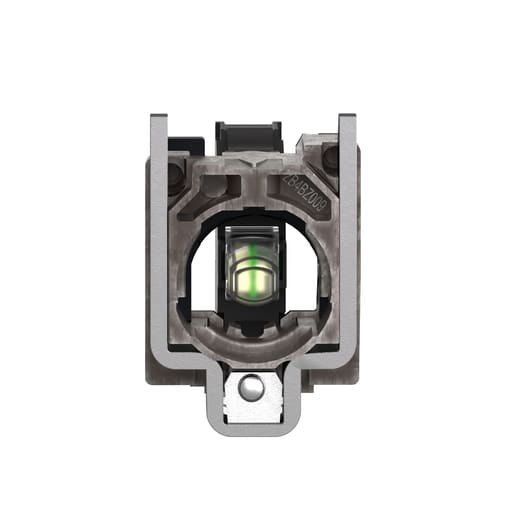

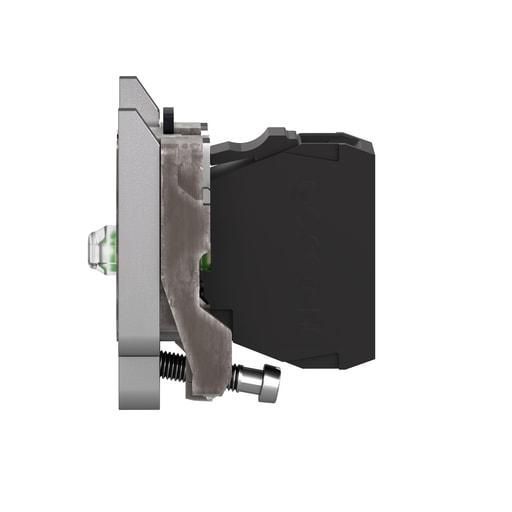

This Harmony XB4, light block with body/fixing collar is green, operates with an integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40.C to 55.C allows versatility in usage of product.
