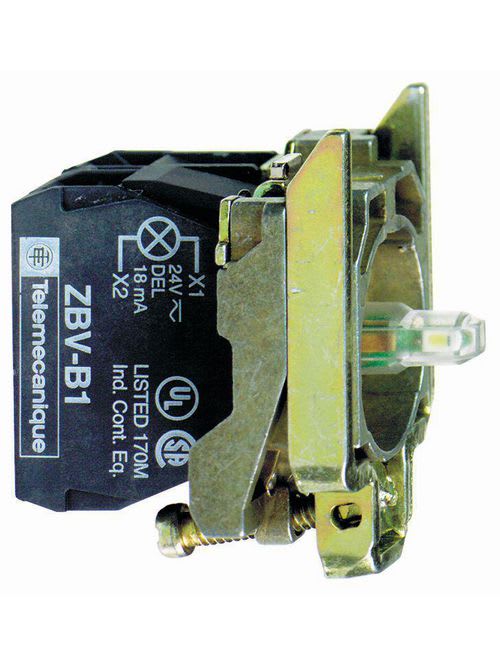

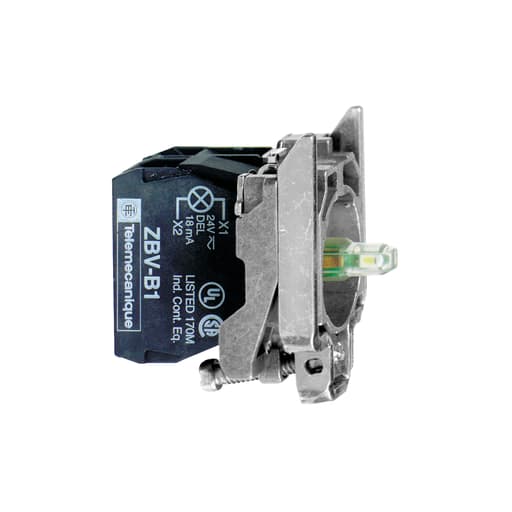

Square-D / Schneider - Square D ZB4BW0G43 22 mm 110 to 120 VAC 2NO Red Single Contact Block Light Module with LED
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901383048
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - ZB4BW0G43
Color - Red
Country of Origin - France
Packaging
1 ea
EAN
03389110893380
Part #
199373
Catalog #
ZB4BW0G43
Commercial reference
ZB4BW0G43
12-Digit UPC:
785901383048
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number:
ZB4BW0G43
Color:
Red
Country of Origin:
France
Current:
14 mA
ERP_productname:
SQD ZB4BW0G43 RED 120V PROTECTED LED W/2 N/O CONTACT
Family Brand Name:
Schneider Electric
Head Type:
Standard
Size:
30 MM,47 MM
Sub Brand:
ZB4
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1
Type:
Complete body/contact assembly and light block
Voltage:
110...120 Volt AC 50/60 HZ
SoneparProductId:
SKU_US_26662606
