Square-D / Schneider - Square D ZB4BW0G63 22 mm 110 to 120 VAC 2 NO Blue Single Contact Block Light Module with LED

Essential specifications

12-Digit UPC - 785901383123
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - ZB4BW0G63
Color - Blue
Country of Origin - France

Packaging

1 ea

EAN

03389110893465

Part #

175372

Catalog #

ZB4BW0G63

Commercial reference

ZB4BW0G63

12-Digit UPC:

785901383123

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

ZB4BW0G63

Color:

Blue

Country of Origin:

France

Current:

14 mA

ERP_productname:

SQD ZB4BW0G63 BLUE 120V PROTECTED LED W/2 N/O CONTACT

Family Brand Name:

Schneider Electric

Size:

30 MM,47 MM

Sub Brand:

ZB4

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

Complete body/contact assembly and light block

Voltage:

110...120 Volt AC 50/60 HZ

SoneparProductId:

SKU_US_26662578

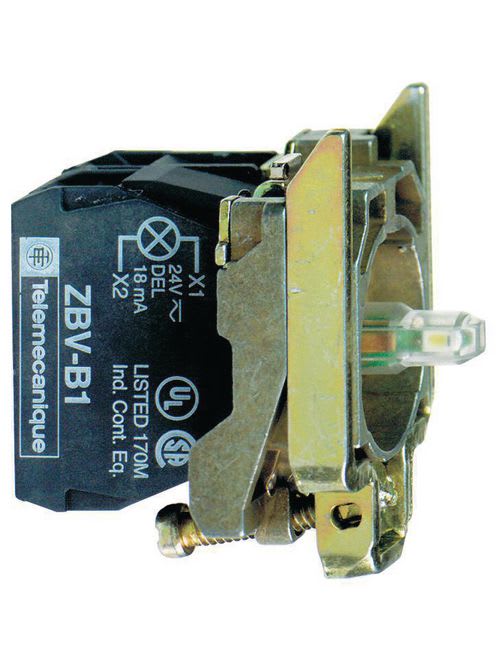

This Harmony XB4, light block with body/fixing collar is blue, operates with an integral LED. It has 2 x NO contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40.C to 55.C allows versatility in usage of product.
