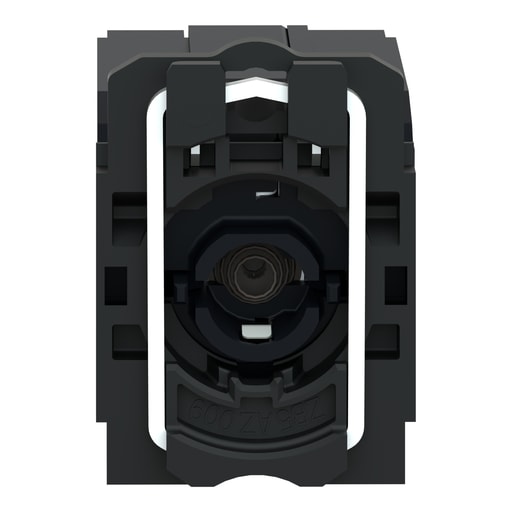

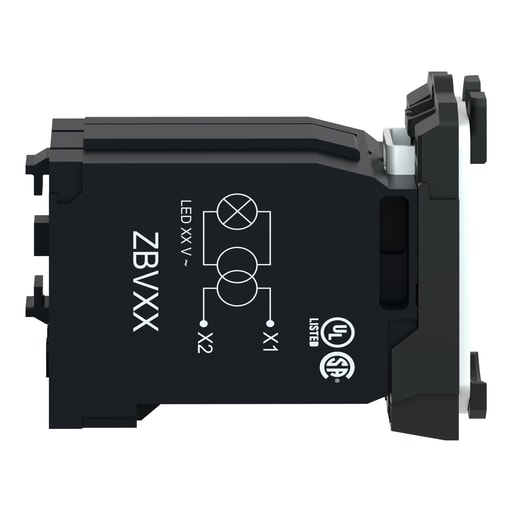

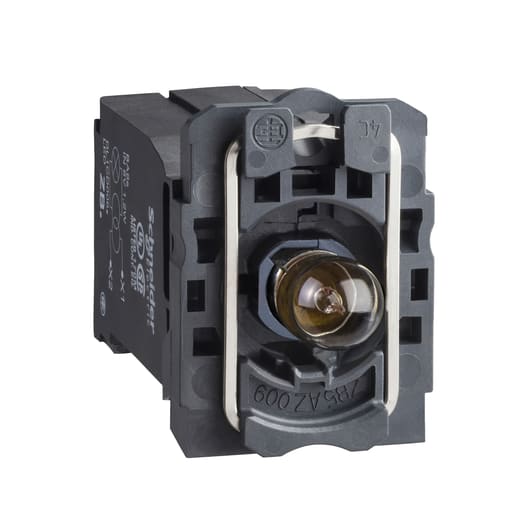

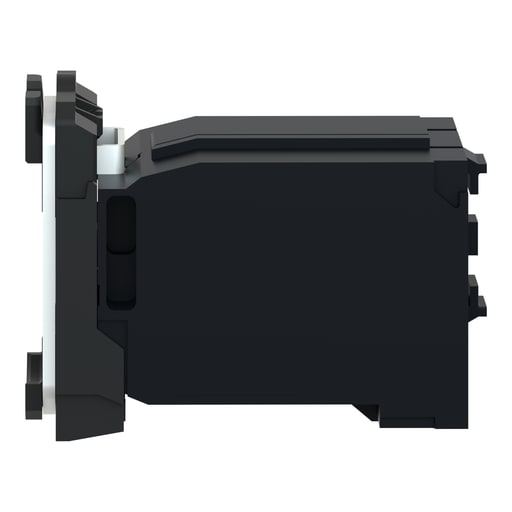

Square-D / Schneider - Square D ZB5AV8 22 mm 440 to 480 VAC Mounting Collar Push Button Light Module

Essential specifications

12-Digit UPC - 389110908315
Catalog Number - ZB5AV8
Country of Origin - USA
ERP_productname - SQD ZB5AV8 PILOT LIGHT MODULE 480 V
Family Brand Name - Schneider Electric

Packaging

1 ea

EAN

03389110908312

Part #

165078

Catalog #

ZB5AV8

Commercial reference

ZB5AV8

12-Digit UPC:

389110908315

Catalog Number:

ZB5AV8

Country of Origin:

USA

ERP_productname:

SQD ZB5AV8 PILOT LIGHT MODULE 480 V

Family Brand Name:

Schneider Electric

Heights:

42 mm

Size:

30 MM,42 MM,55 MM

Sub Brand:

ZB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

Complete body/light block assembly

Voltage:

440...480 Volt AC 50/60 HZ

Widths:

30 mm

SoneparProductId:

SKU_US_26548680

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZB5AZ905; ZBY2101; ZBYLEG503001; ZBYP2101 - Cross Sell Products: NSYPLM43G; XALK84W3BE
