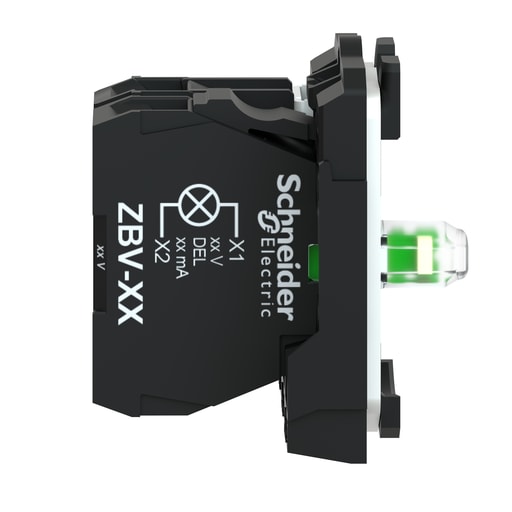

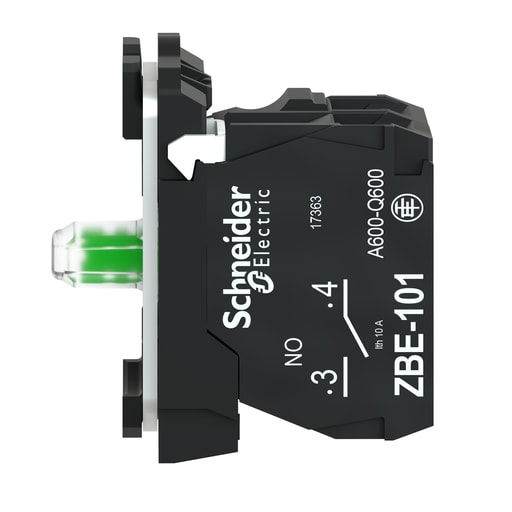

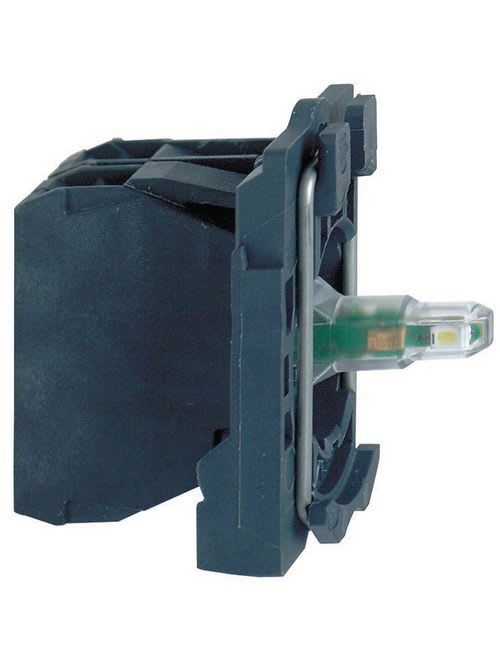

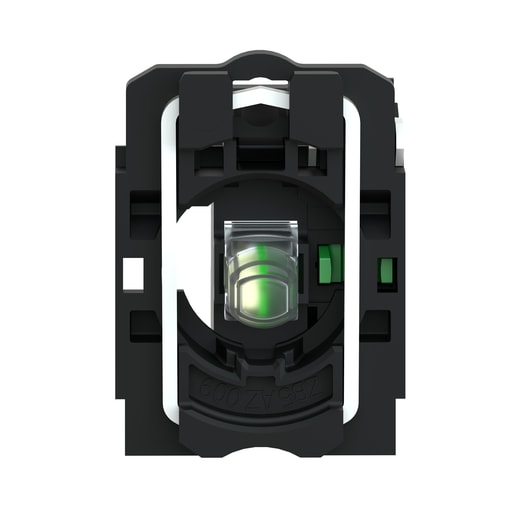

Square-D / Schneider - Square D ZB5AW0B51 22 mm 24 VAC/VDC 1NO Single Contact Block Light Module with LED

Essential specifications

12-Digit UPC - 785901387855
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - ZB5AW0B51
Color - Orange
Country of Origin - France

Packaging

1 ea

EAN

03389110908572

Part #

120470

Catalog #

ZB5AW0B51

Commercial reference

ZB5AW0B51

12-Digit UPC:

785901387855

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

ZB5AW0B51

Color:

Orange

Country of Origin:

France

Current:

18 mA

ERP_productname:

SQD ZB5AW0B51 YELLOW 24V PROTECTED LED W/1 N/O CONTACT

Family Brand Name:

Schneider Electric

Head Type:

Standard

Size:

30 MM,32 MM,42 MM

Sub Brand:

ZB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

Complete body/contact assembly and light block

Voltage:

24 Volt AC/DC 50/60 HZ

SoneparProductId:

SKU_US_26662749

This Harmony XB5, light block with body/fixing collar operates with an integral LED. It has 1 x NO contact and a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
