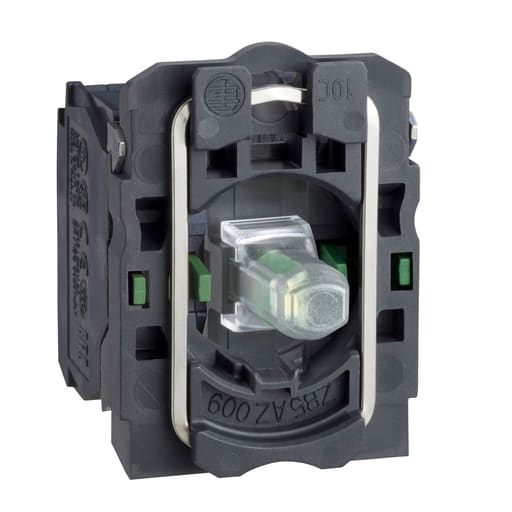

Square-D / Schneider - Square D ZB5AW0B53 22 mm 24 VAC/VDC 2NO Single Contact Block Light Module with LED
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901387879
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - ZB5AW0B53
Country of Origin - France
Current - 18 mA
Packaging
1 ea
EAN
03389110908619
Part #
212196
Catalog #
ZB5AW0B53
Commercial reference
ZB5AW0B53
12-Digit UPC:
785901387879
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number:
ZB5AW0B53
Country of Origin:
France
Current:
18 mA
ERP_productname:
SQD ZB5AW0B53 YELLOW 24V PROTECTED LED W/2 N/O CONTACT
Family Brand Name:
Schneider Electric
Head Type:
Standard
Size:
30 MM,32 MM,42 MM
Sub Brand:
ZB5
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1
Type:
COMPLETE BODY/CONTACT ASSEMBLY AND LIGHT BLOCK
Voltage:
24 Volt AC/DC 50/60 HZ
SoneparProductId:
SKU_US_26662787
