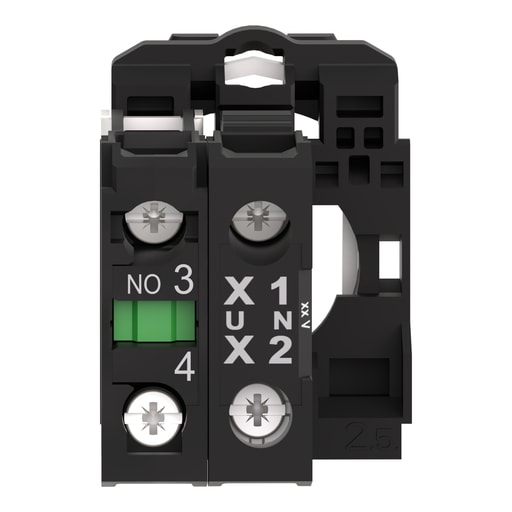

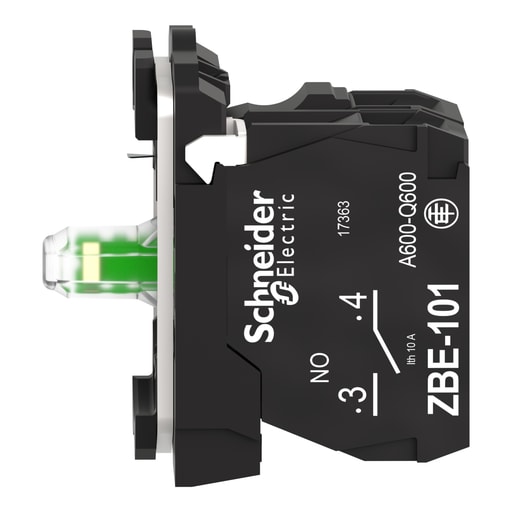

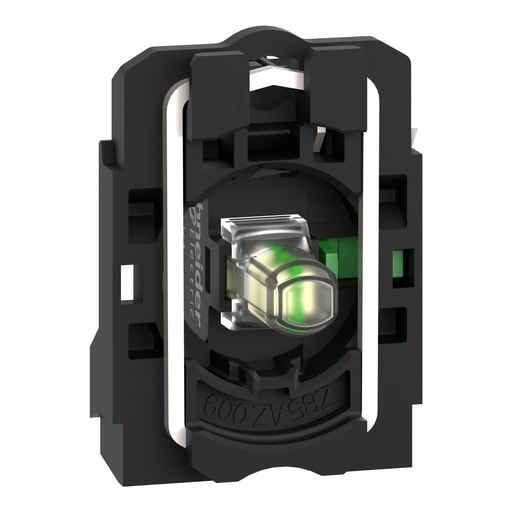

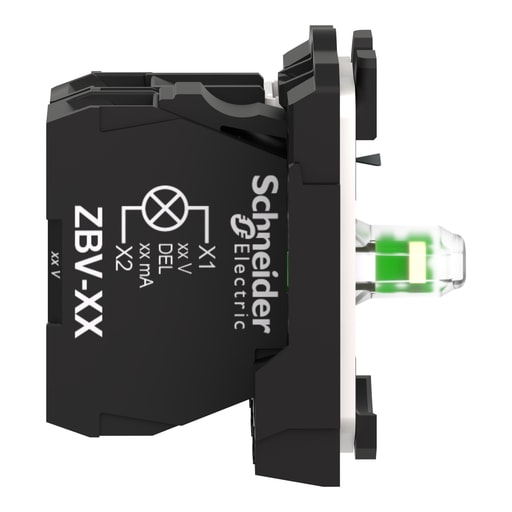

Square-D / Schneider - Square D ZB5AW0G11 22 mm 110 to 120 Volt 1NO Single Contact Block Light Module with LED

12-Digit UPC:

785901387930

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

ZB5AW0G11

Color:

White

Country of Origin:

France

Current:

14 mA

ERP_productname:

SQD ZB5AW0G11 WHITE 120V PROTECTED LED W/1 N/O CONTACT

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

42 mm

Size:

30 MM,32 MM,42 MM

Sub Brand:

ZB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

Complete body/contact assembly and light block

Voltage:

110...120 Volt AC 50/60 HZ

Widths:

30 mm

SoneparProductId:

SKU_US_26662542
