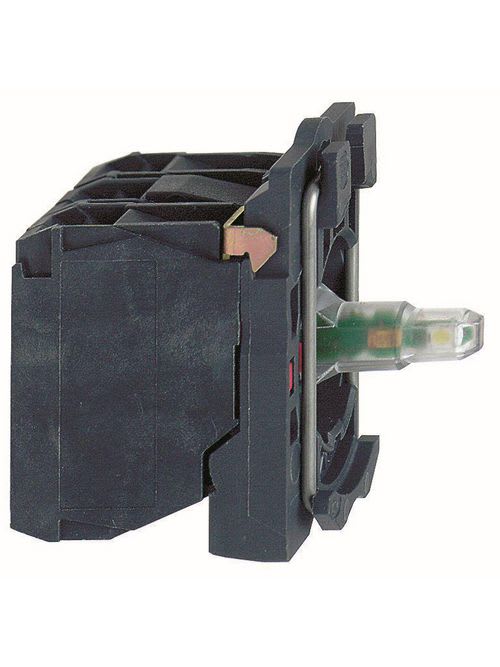

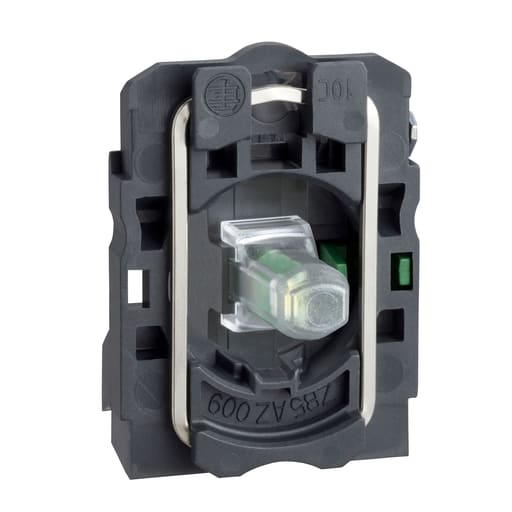

Square-D / Schneider - Square D ZB5AW0G31 22 mm 110 to 120 Volt 1NO Single Contact Block Light Module with LED
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110908810
Amperage - 10 Amp
Catalog Number - ZB5AW0G31
Color - Green
Country of Origin - France
Packaging
1 ea
EAN
03389110908817
Part #
212217
Catalog #
ZB5AW0G31
Commercial reference
ZB5AW0G31
12-Digit UPC:
389110908810
Amperage:
10 Amp
Catalog Number:
ZB5AW0G31
Color:
Green
Country of Origin:
France
Current:
14 mA
ERP_productname:
SQD ZB5AW0G31 GREEN 120V PROTECTED LED W/1 N/O CONTACT
Family Brand Name:
Schneider Electric
Head Type:
Standard
Size:
30 MM,32 MM,42 MM
Sub Brand:
ZB5
Tc Connection:
SCREW CLAMP
Type:
Complete body/contact assembly and light block
Voltage:
600 Volt
SoneparProductId:
SKU_US_26662598
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
