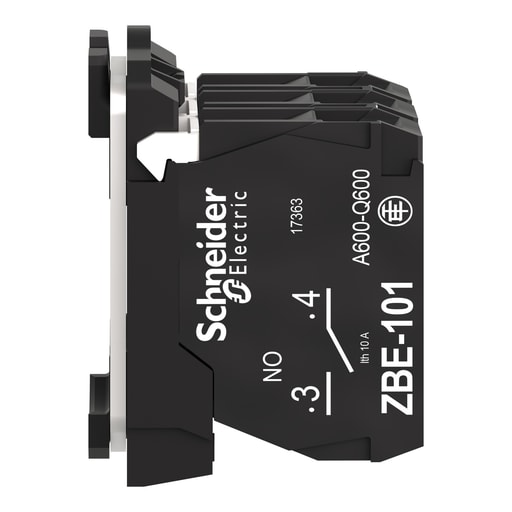

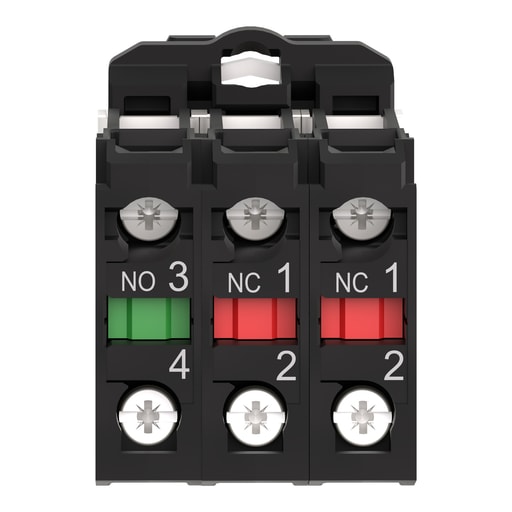

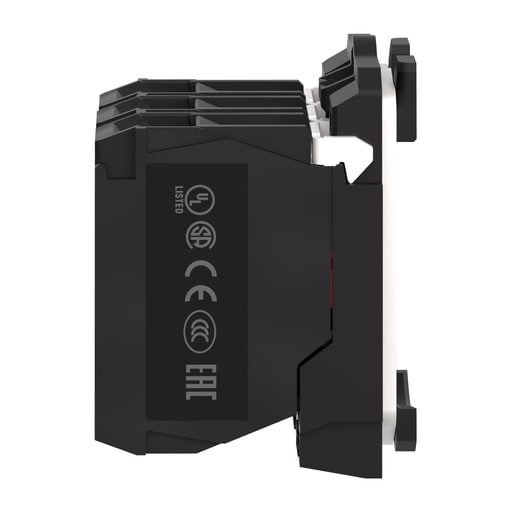

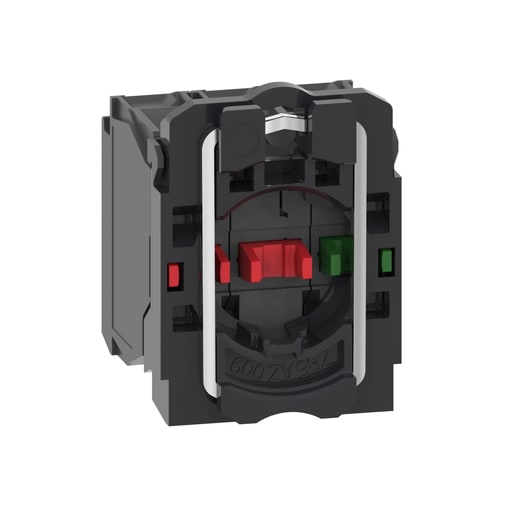

Square-D / Schneider - Square D ZB5AZ141 22 mm 1NO 2NC Push Button Contact Block

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110925831

  • Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

  • Catalog Number - ZB5AZ141

  • Country of Origin - USA

  • ERP_productname - SQD ZB5AZ141 SCREW TERMINAL

Packaging

  • 1 ea

EAN

03389110925838

Part #

134888

Catalog #

ZB5AZ141

Commercial reference

ZB5AZ141

12-Digit UPC:

389110925831

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

ZB5AZ141

Country of Origin:

USA

ERP_productname:

SQD ZB5AZ141 SCREW TERMINAL

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

42 mm

Size:

30 MM,32 MM,42 MM

Sub Brand:

ZB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

Single;Complete body/contact assembly

Voltage:

600 Volt

Widths:

30 mm

SoneparProductId:

SKU_US_26750822

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Prop 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: XALK84W3BE - Related Products: ZB5AZ101; ZBE102 - Compatible Products: NSYPLM43G; ZB5AZ905; ZBYLEG503001; ZBYLEG304001 - Spare Part Products: ZBE101; ZBE102; ZB5AZ009
