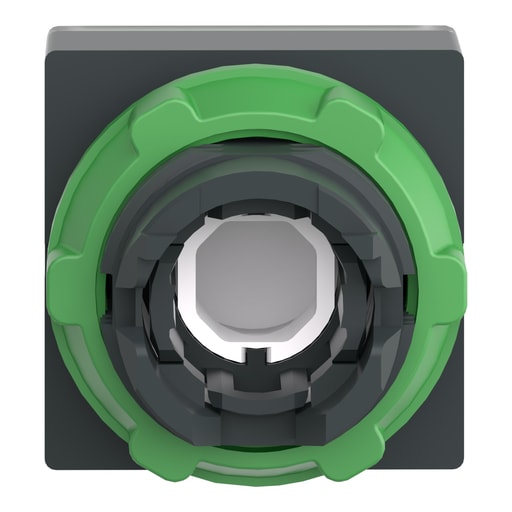

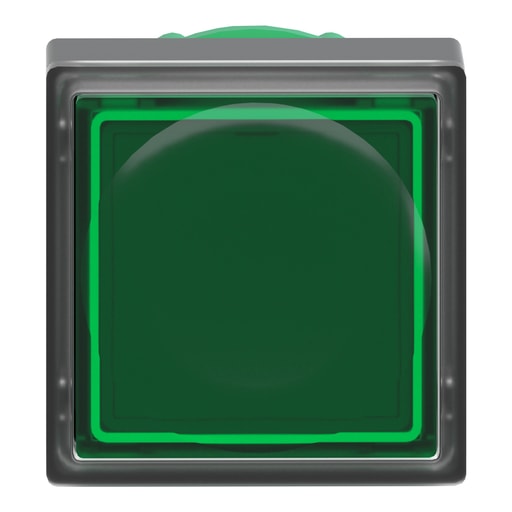

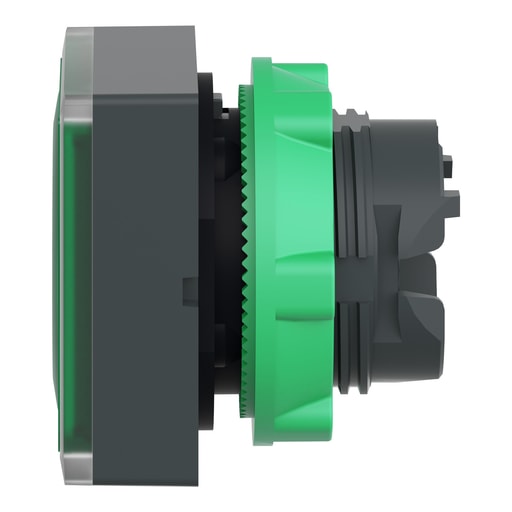

Square-D / Schneider - Square D ZB5CW333 22 mm Green Square Flush Momentary Illuminated Push Button Operator

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110934833

  • Actuator - GREEN FLUSH, UNMARKED,SPRING RETURN

  • Applications - INTEGRAL LED

  • Catalog Number - ZB5CW333

  • Color - Green

Packaging

  • 1 ea

EAN

03389110934830

Part #

244628

Catalog #

ZB5CW333

Commercial reference

ZB5CW333

12-Digit UPC:

389110934833

Actuator:

GREEN FLUSH, UNMARKED,SPRING RETURN

Applications:

INTEGRAL LED

Catalog Number:

ZB5CW333

Color:

Green

Country of Origin:

France

ERP_productname:

SQD ZB5CW333 HEAD FOR ILLUMINATED PUSH BUTTON, HARMONY XB5, GREEN SQUARE FLUSH ILLUM PUSHBUTTON ?22 MM SPRING RETURN INTEGRAL LED

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

30 mm

Size:

22 MM,30 MM,30 MM,30 MM

Sub Brand:

ZB5

Type:

HEAD FOR ILLUMINATED PUSH-BUTTON

Widths:

30 mm

SoneparProductId:

SKU_US_26751696

This green flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZB5AZ905 - Cross Sell Products: NSYPLM43G; XALK84W3BE
