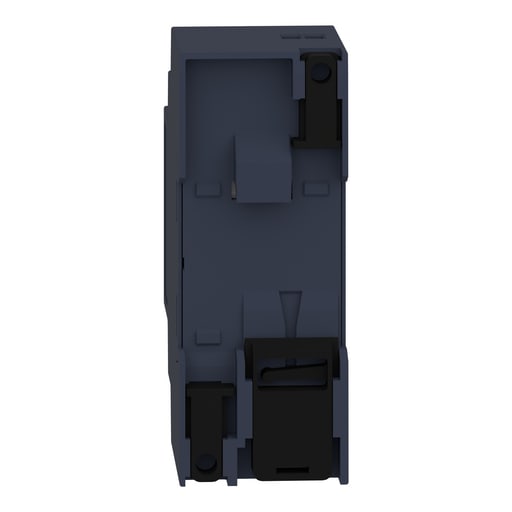

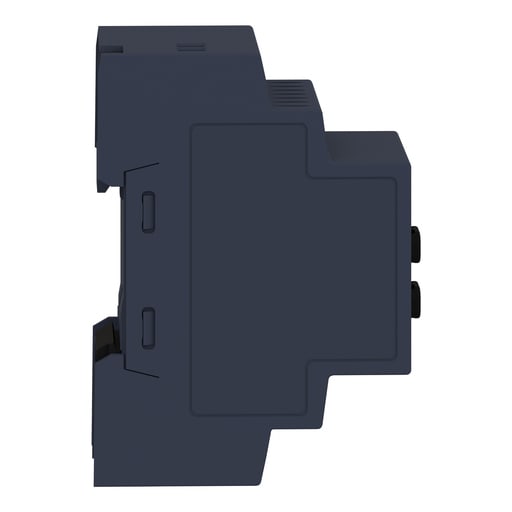

Square-D / Schneider - Square D ZBRRD 24 to 240 VAC/VDC 3 Amp 2-Relay Batteryless Push Button Programmable Receiver

Essential specifications

12-Digit UPC - 606480521167
Amperage - 0.3 Amp 48 V DC EN/IEC 60947-5-1-3 Amp 24 V DC UL 508-1.5 Amp 240 V AC EN/IEC 60947-5-1-3 Amp 120 V AC EN/IEC 60947-5-1-3 Amp 240 V AC UL 508-3 Amp 24 V DC CSA C22.2 NO 14-3 Amp 240 V AC CSA C22.2 NO 14
Applications - Interface to actuators
Catalog Number - ZBRRD
Country of Origin - Indonesia

Packaging

1 ea

EAN

03606480521164

Part #

184115

Catalog #

ZBRRD

Commercial reference

ZBRRD

12-Digit UPC:

606480521167

Amperage:

0.3 Amp 48 V DC EN/IEC 60947-5-1-3 Amp 24 V DC UL 508-1.5 Amp 240 V AC EN/IEC 60947-5-1-3 Amp 120 V AC EN/IEC 60947-5-1-3 Amp 240 V AC UL 508-3 Amp 24 V DC CSA C22.2 NO 14-3 Amp 240 V AC CSA C22.2 NO 14

Applications:

Interface to actuators

Catalog Number:

ZBRRD

Country of Origin:

Indonesia

Depths:

75 mm

ERP_productname:

SQD ZBRRD PRGRAM. R'CVR, 2 RELAYS, MOMEN/MAN

Family Brand Name:

Schneider Electric

Heights:

108 mm

Material:

Plastic

Size:

2.95 in

Sub Brand:

ZBRRD

Tc Connection:

1 CONDUCTOR CABLE 0.14-2.5 MMA. - AWG 26...AWG 14 - SOLID - WITHOUT CABLE END IEC 60947-1-2 CONDUCTORS CABLE 0.14-1.5 MMA. - AWG 26...AWG 16 - SOLID - WITHOUT CABLE END IEC 60947-1-1 CONDUCTOR CABLE 0.14-4 MMA. - AWG 26...AWG 12 - FLEXIBLE - WITH CABLE END IEC 60947-1-2 CONDUCTORS CABLE 0.14-1.5 MMA. - AWG 26...AWG 16 - FLEXIBLE - WITH CABLE END IEC 60947-1

Type:

Bi-stable;Monostable;Programmable receiver

Voltage:

24...240 Volt AC/DC 50/60 HZ-10...10

Wattage:

4 Watt AC/DC

Widths:

36 mm

SoneparProductId:

SKU_US_26489539

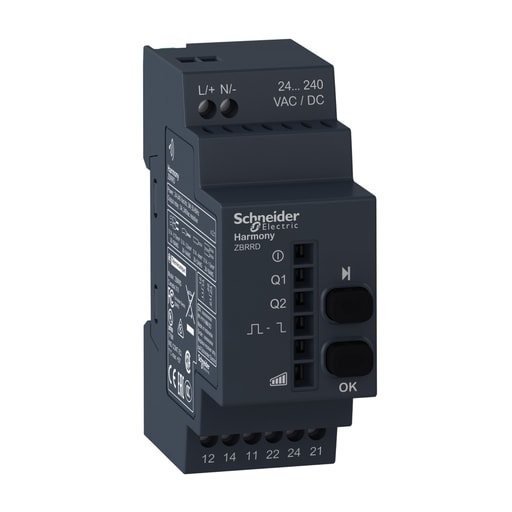

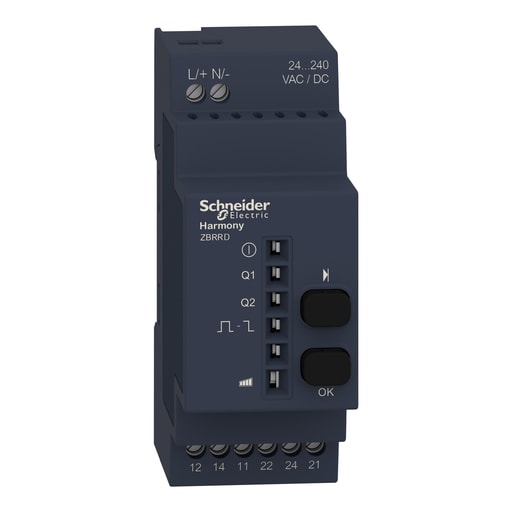

This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZB4RTA1; ZB4RTA2; ZB4RTA3; ZB4RTA4; ZB4RTA5; ZB5RTA1; ZB5RTA2; ZB5RTA3; ZB5RTA331; ZB5RTA4; ZB5RTA432; ZB5RTA5; ZB5RTA6; ZB5RTC2
