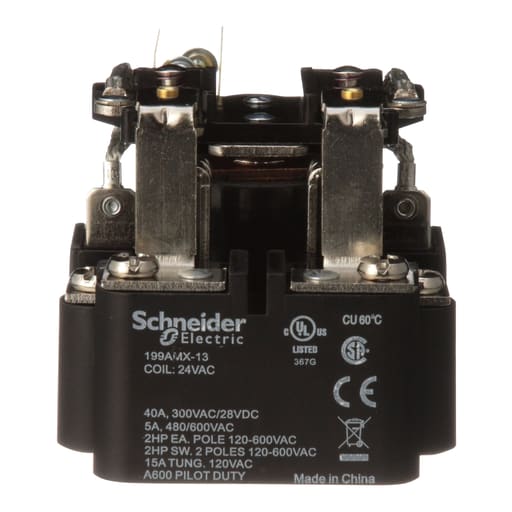

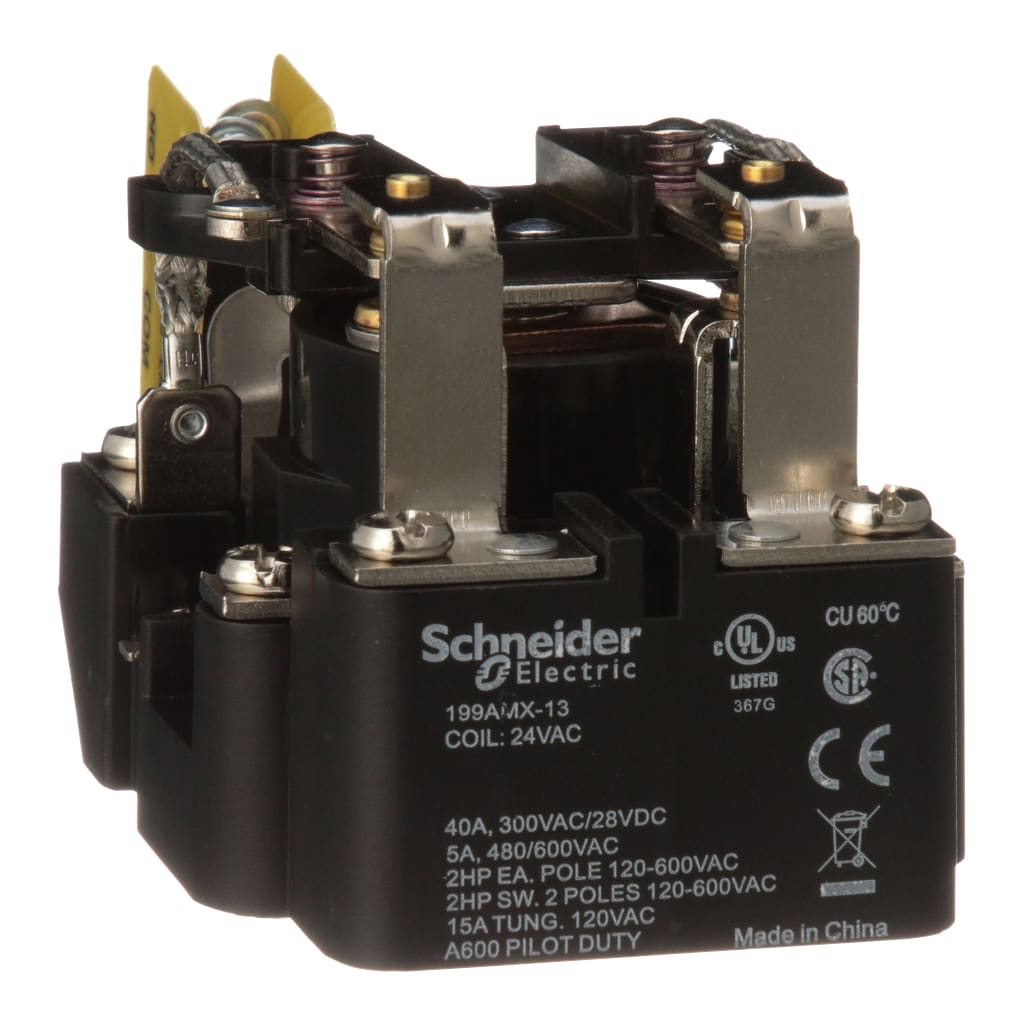

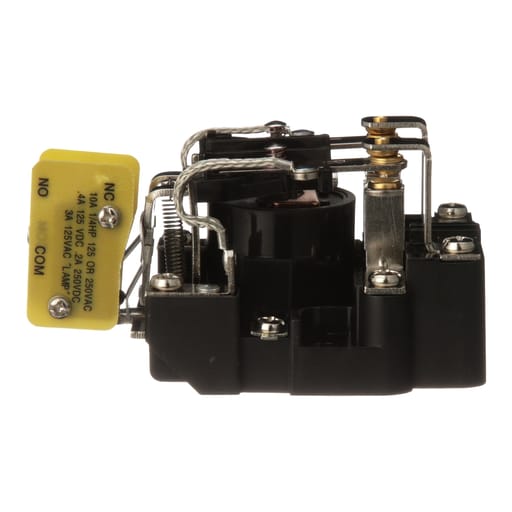

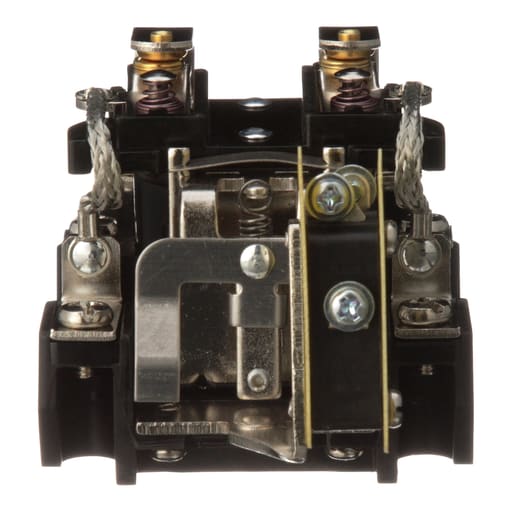

Square-D / Schneider - SQUARED 199AMX-13 Power Relay, DPDT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901148982
Catalog Number - 199AMX-13
Country of Origin - China
ERP_productname - SQD 199AMX13 OPEN PWR RY DPDT AUX SW 40A 24VAC
Family Brand Name - Schneider Electric
Packaging
10 ea
EAN
03606481104403
Part #
134729
Catalog #
199AMX13
Commercial reference
199AMX13
12-Digit UPC:
785901148982
Catalog Number:
199AMX-13
Country of Origin:
China
ERP_productname:
SQD 199AMX13 OPEN PWR RY DPDT AUX SW 40A 24VAC
Family Brand Name:
Schneider Electric
Input Voltage:
24 V
Length:
8 mm
Short Circuit Current Ratng:
3 kA
SoneparProductId:
SKU_US_244581877
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 24VAC with DPDT silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 50-1289-P
