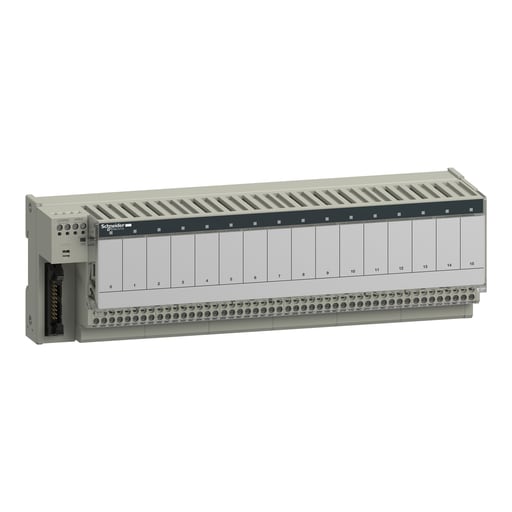

Square-D / Schneider - SQUARED ABE7P16F310 sub-base for pl

This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This plug-in relay sub base offers 16 channels with 2 terminals per channel. The input sub base offers a rated supply voltage of 19V to 30V. It is furnished with screw type terminals for electrical connection. It is an IP2x rated product. Its dimensions are 272mm (width) x 74mm (depth) x 89mm (height). It weighs 0.85kg. It is suitable for all types of industrial applications. This product is certified by GL, DNV, LROS, CSA, UL, BV and EAC. It is compatible with ABS7S33E, ABR7 and ABS7E. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: BMXDDI3202K; BMXDDI6402K
