Square-D / Schneider - SQUARED BMEH582040C redundant proce

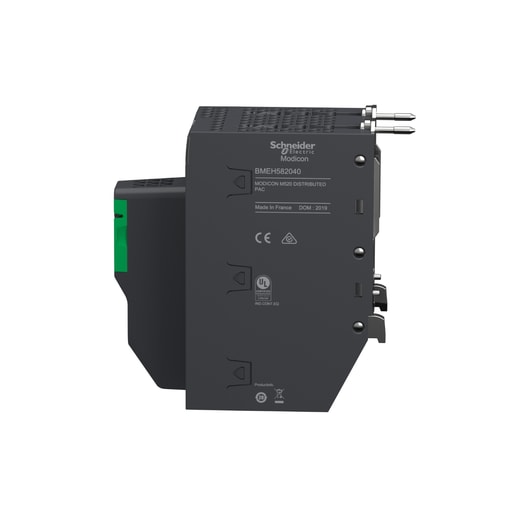

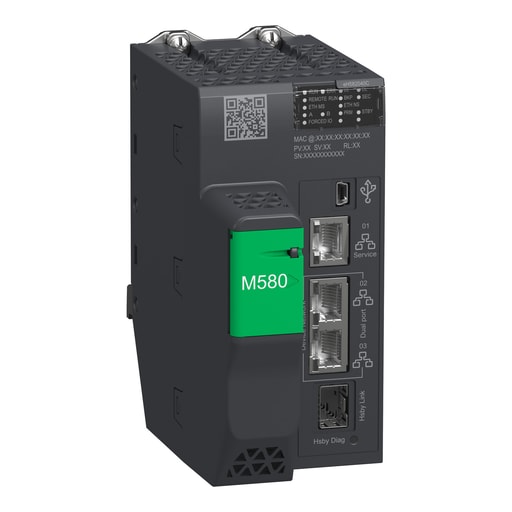

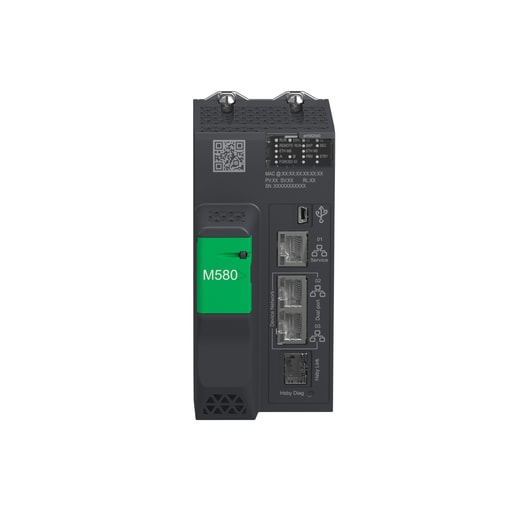

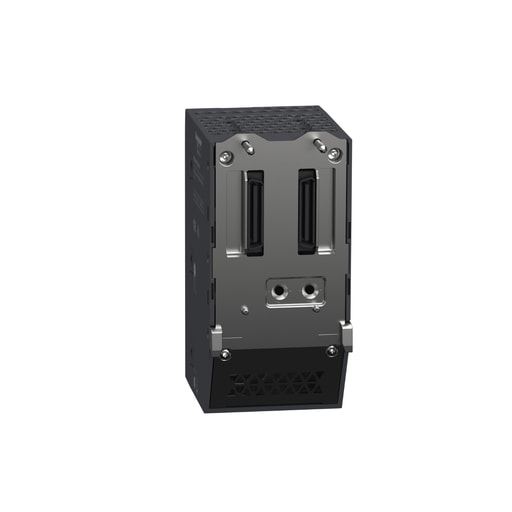

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 270mA at 24V DC. It supports 8192 discrete, 2048 analogue local I/O channels and 64 distributed equipment. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 490NAC0100; BMXRMS004GPF; BMXXCAUSBH018; CEXSPUCZLSPAZZ; 490NAC0201; BMXXCAUSBH045; CEXSPUCZLGPAZZ; CEXSPUCZLTPAZZ; TCSECE3M3M1S4; CEXSPUCZXSPAZZ; TCSECE3M3M2S4; CEXSPUCZXGPAZZ; TCSECE3M3M3S4; CEXSPUCZXTPAZZ; TCSECE3M3M5S4; CEXSPUCZXEPAZZ; CEXSPUCZXGPBZZ; CEXSPUCZXTPBZZ; CEXSPUCZXEPBZZ; TCSECU3M3M3S4; TCSECU3M3M5S4 - Cross Sell Products: BMEH584040C; BMEH586040C; BMEP582040H; BMEP585040C; BMEP586040C; BMEH582040S; BMEH584040S; BMEH586040S; BMEP582040S; BMEP584040S; BMEP586040S
