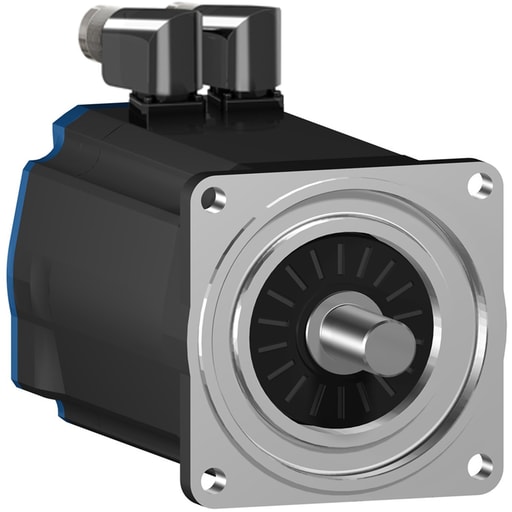

Square-D / Schneider - SQUARED BSH1001P12A2A servo motor B
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901054085
Applications - LEXIUM 5, 15 & 32
Catalog Number - BSH1001P12A2A
Country of Origin - Germany
ERP_productname - SQD BSH1001P12A2A AC SERVO MOTOR BSH - 2.7 N.M - 3000 RPM - KEYED SHAFT - WITHOUT BRAKE - IP50
Packaging
1 ea
EAN
03389118138254
Part #
196205
Catalog #
BSH1001P12A2A
Commercial reference
BSH1001P12A2A
12-Digit UPC:
785901054085
Applications:
LEXIUM 5, 15 & 32
Catalog Number:
BSH1001P12A2A
Country of Origin:
Germany
ERP_productname:
SQD BSH1001P12A2A AC SERVO MOTOR BSH - 2.7 N.M - 3000 RPM - KEYED SHAFT - WITHOUT BRAKE - IP50
Enclosure:
IP50
Family Brand Name:
Schneider Electric
Length:
168.5 mm
Number of Holes:
4 Hole
Number of Phases:
3 Phase
Number of Poles:
8 Pole
Sub Brand:
LEXIUM
Torque Rating:
0.89 N.M/A 120 A.C,3 N.M LXM15LD21M3, 230 V, SINGLE PHASE-3 N.M LXM15LD17N4, 230 V, THREE PHASE-3 N.M LXM15LD21M3, 230 V, THREE PHASE-3.16 N.M LXM05AD17M3X, 200...240 V, THREE PHASE-3.16 N.M LXM05BD17M3X, 200...240 V, THREE PHASE-3.16 N.M LXM05CD17M3X, 200...240 V, THREE PHASE-2.7 N.M LXM32.D18N4 6 A, 400 V, THREE PHASE-2.7 N.M LXM32.D18N4 6 A, 480 V, THREE PHASE-2.5 N.M LXM15LD10N4, 480 V, THREE PHASE-2.5 N.M LXM15LD17N4, 480 V, THREE PHASE-2.7 N.M LXM15LD10N4, 230 V, THREE PHASE-2.7 N.M LXM15LD10N4, 400 V, THREE PHASE-2.7 N.M LXM15LD17N4, 400 V, THREE PHASE-2.92 N.M LXM05AD22N4, 380...480 V, THREE PHASE-2.92 N.M LXM05BD22N4, 380...480 V, THREE PHASE-2.92 N.M LXM05CD22N4, 380...480 V, THREE PHASE
Type:
BSH,SERVO MOTOR
Widths:
30 mm
SoneparProductId:
SKU_US_315759821
