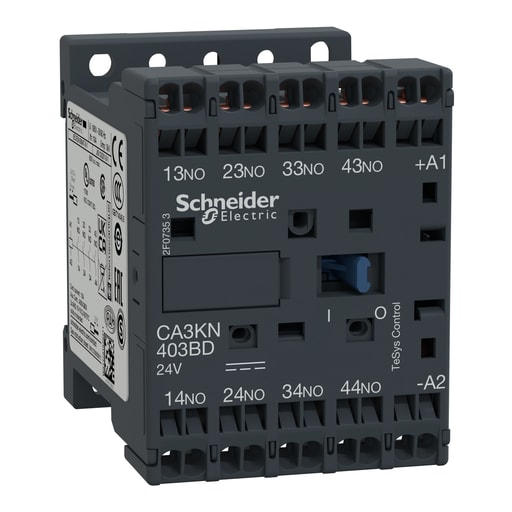

Square-D / Schneider - SQUARED CA3KN403BD Control relay, T

Essential specifications

12-Digit UPC - 389110241795
Amperage - 10 Amp AT <= 50 ?.C
Applications - Control circuit
Catalog Number - CA3KN403BD
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110241792

Part #

125136

Catalog #

CA3KN403BD

Commercial reference

CA3KN403BD

12-Digit UPC:

389110241795

Amperage:

10 Amp AT <= 50 ?.C

Applications:

Control circuit

Catalog Number:

CA3KN403BD

Country of Origin:

Indonesia

Depths:

57 mm

ERP_productname:

SQD CA3KN403BD CONTROL RELAY 600VAC 10AMP IEC +OPTIONS

Enclosure:

IP2X

Family Brand Name:

Schneider Electric

Heights:

58 mm

Number of Poles:

4 Pole

Size:

2.24 in

Sub Brand:

CA3K;TeSys CAK

Tc Connection:

SPRING TERMINALS 1 0.75-1.5 MMA.SOLID- SPRING TERMINALS 1 0.75-1.5 MMA.FLEXIBLE WITHOUT CABLE END

Type:

Control relay

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_30269202

TeSys K control relay, 4 contacts (4NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA4KE1B; LA4KC1B; LA9D90; LA1KN403; LA1KN223; LA1KN313; LA4KC2B
