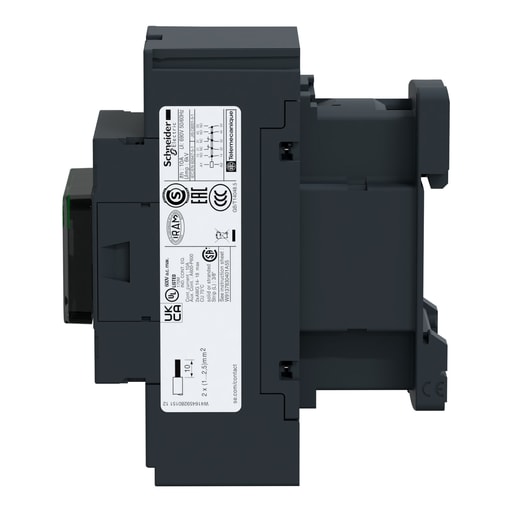

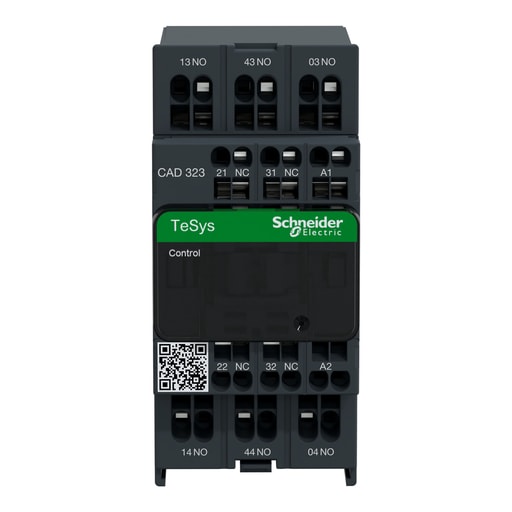

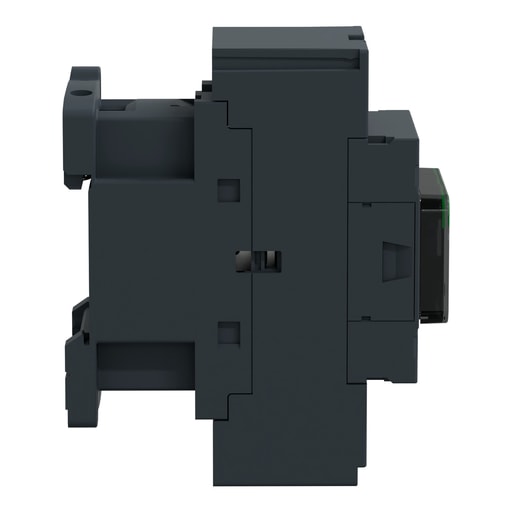

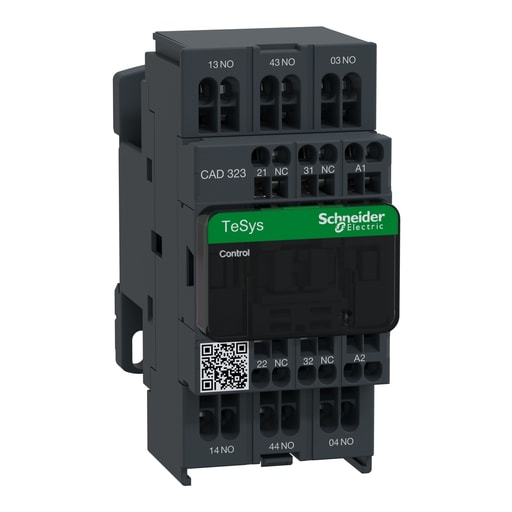

Square-D / Schneider - SQUARED CAD323FE7 TeSys Deca contro
Login or create an account to check prices & order
Essential specifications
Amperage - 10 Amp AT <= 60 ?.C
Applications - Braking Control
Catalog Number - CAD323FE7
Country of Origin - Indonesia
Depths - 84 mm
Packaging
1 ea
EAN
03389110819588
Part #
301940
Catalog #
CAD323FE7
Commercial reference
CAD323FE7
Amperage:
10 Amp AT <= 60 ?.C
Applications:
Braking Control
Catalog Number:
CAD323FE7
Country of Origin:
Indonesia
Depths:
84 mm
ERP_productname:
SQD CAD323FE7 TESYS DECA CONTROL RELAY - 3 NO + 2 NC - <= 690 V - 115 V AC STANDARD COIL
Enclosure:
IP2X FRONT FACE CONFORMING TO VDE 0106
Family Brand Name:
Schneider Electric
Heights:
99 mm
Size:
3.31 in
Sub Brand:
CAD;TeSys CAD
Tc Connection:
Spring-Clamp Contact Block
Type:
Control Relay
Widths:
45 mm
SoneparProductId:
SKU_US_396505454
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 115V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAD4VG; LAD4RCG; LAD9ET1S; LADN223; LADN403; LADN113; LAD6K10M; LADN203; LAD9ET1; LAD6K10F; LADN313; LAD6K10B; LADN023; LADN043; LADR23; LADN133; LADT03; LAD6K10E; LADR03; LADS23; LADT23; LA9D93; LADC223; LAD6K10U; LADT43 - Cross Sell Products: LC1D09M7 - Spare Part Products: LXD1FE7
