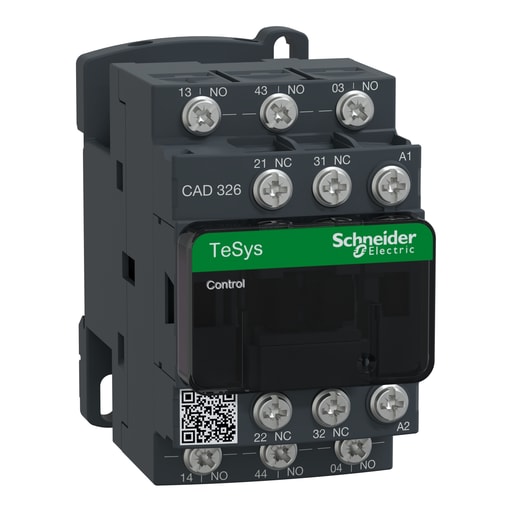

Square-D / Schneider - SQUARED CAD326M7 TeSys Deca control
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110632067
Amperage - 10 Amp AT <= 60 ?.C
Applications - Braking Control
Catalog Number - CAD326M7
Country of Origin - Indonesia
Packaging
1 ea
EAN
03389110632064
Part #
288648
Catalog #
CAD326M7
Commercial reference
CAD326M7
12-Digit UPC:
389110632067
Amperage:
10 Amp AT <= 60 ?.C
Applications:
Braking Control
Catalog Number:
CAD326M7
Country of Origin:
Indonesia
Depths:
84 mm
ERP_productname:
SQD CAD326M7 RELAY 600V 10AMP TESYS
Enclosure:
IP2X FRONT FACE CONFORMING TO VDE 0106
Family Brand Name:
Schneider Electric
Heights:
77 mm
Size:
3.31 in
Sub Brand:
CAD;TeSys CAD
Tc Connection:
LUGS-RING TERMINALS 8 MM)
Type:
Control Relay
Widths:
45 mm
SoneparProductId:
SKU_US_352442681
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V AC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAD4RCU; LAD4VU; LAD9ET1S; LAD6K10M; LADN226; LADN116; LADN406; LAD9ET1; LAD6K10F; LADN206; LAD6K10B; LADN316; LADT26; LADR06; LADN026; LADR26; LAD6K10E; LAD8N116; LA9D93; LADR46; LADT46; LAD6K10U - Cross Sell Products: LC1D09M7 - Spare Part Products: LXD1M7
