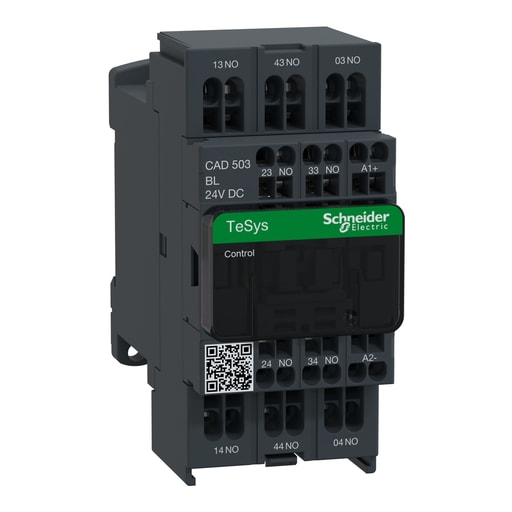

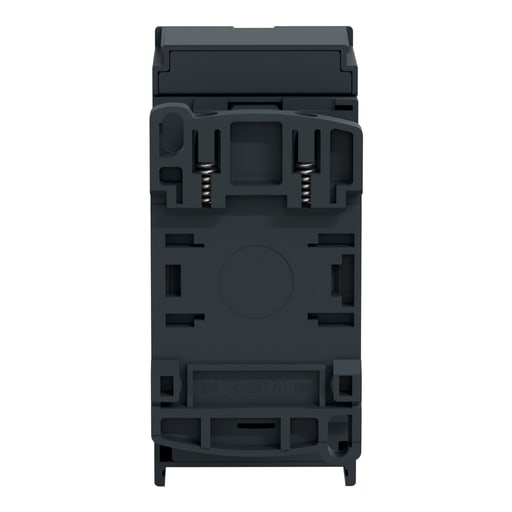

Square-D / Schneider - SQUARED CAD503BL TeSys Deca control

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAD9ET1S; LAD4DDL; LADN113; LAD6K10M; LADN203; LAD9ET1; LAD6K10F; LAD6K10B; LADN023; LADR23; LADT03; LAD6K10E; LADR03; LADS23; LADT23; LA9D93; LADC223; LAD6K10U; LADT43 - Cross Sell Products: LC1D09M7
