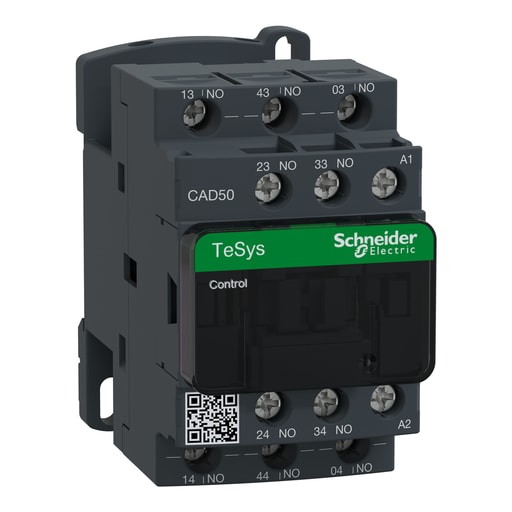

Square-D / Schneider - SQUARED CAD50P7 TeSys Deca control

Essential specifications

12-Digit UPC - 389110403339
Amperage - 10 Amp AT <= 60 ?.C
Applications - Control circuit
Catalog Number - CAD50P7
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110403336

Part #

223580

Catalog #

CAD50P7

Commercial reference

CAD50P7

12-Digit UPC:

389110403339

Amperage:

10 Amp AT <= 60 ?.C

Applications:

Control circuit

Catalog Number:

CAD50P7

Country of Origin:

Indonesia

Depths:

84 mm

ERP_productname:

SQD CAD50P7 RELAY 600V 10AMP TESYS + OPTIONS

Enclosure:

IP2X FRONT FACE CONFORMING TO VDE 0106

Family Brand Name:

Schneider Electric

Heights:

77 mm

Size:

3.31 in

Sub Brand:

CAD;TeSys CAD

Tc Connection:

SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END

Type:

Control relay

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_29585317

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LAD4RCU; LADN11; LADN20; LAD8N11; LADT2; LADN40; LADN31; LADN02; LADT0; LAD8N20; LADS2; LADR2; LADR0; LADN04; LADN13; LAD4VU; LAD9ET1S; LADR4; LADT4; LADN22S; LADC22; LAD6K10M; LADN10; LAD8N02; LAD9ET1; LAD6K10F; LADN01; LAD6K10B; LA1DX20; LA1DX02; LA1DZ31; LA1DY20; LAD6K10E; LA1DZ40; LA9D93; LAD6K10U - Cross Sell Products: LC1D09M7 - Spare Part Products: LXD1P7
