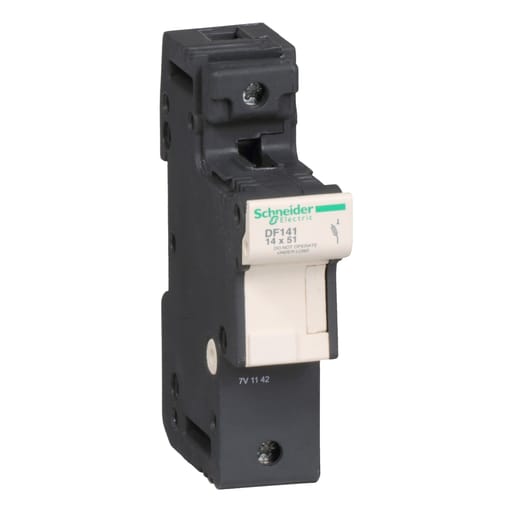

Square-D / Schneider - SQUARED DF141 Fuse carrier, TeSys D

Essential specifications

12-Digit UPC - 891194073730
Amperage - 50 Amp
Applications - 14 X 51 MM
Catalog Number - DF141
Country of Origin - Tunisia

Packaging

1 ea

EAN

03389119407373

Part #

199800

Catalog #

DF141

Commercial reference

DF141

12-Digit UPC:

891194073730

Amperage:

50 Amp

Applications:

14 X 51 MM

Catalog Number:

DF141

Country of Origin:

Tunisia

Depths:

76.5 mm

ERP_productname:

SQD DF141 FUSEHOLDER 600V 50AMP 1POLE 14X51MM

Family Brand Name:

Schneider Electric

Heights:

110.8 mm

Size:

110.8 MM,26.5 MM,76.5 MM

Sub Brand:

TESYS DF

Tc Connection:

SCREW CLAMP TERMINALS 1 2.5-25 MMA.RIGID- SCREW CLAMP TERMINALS 2 2.5-10 MMA.RIGID- SCREW CLAMP TERMINALS 1 2.5-25 MMA.FLEXIBLE WITH OR WITHOUT- SCREW CLAMP TERMINALS 2 2.5-10 MMA.FLEXIBLE WITH OR WITHOUT

Type:

FUSE CARRIER

Voltage:

690 Volt AC-690 Volt DC

Widths:

26.5 mm

SoneparProductId:

SKU_US_315768947

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. Compact (26.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh). Prop 65: WARNING: Cancer - www.P65Warnings.ca.gov
