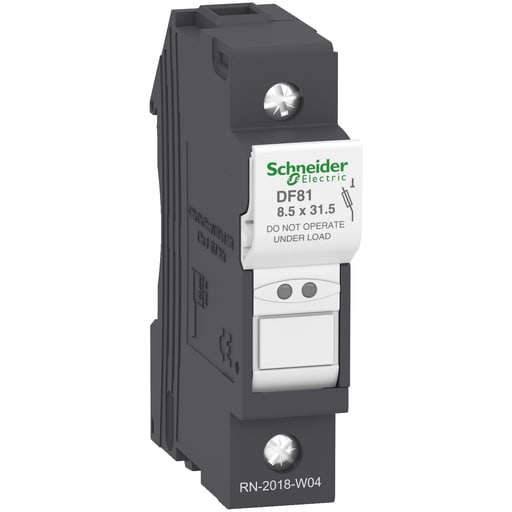

Square-D / Schneider - SQUARED DF81 Fuse carrier, TeSys DF

Essential specifications

12-Digit UPC - 785901911067
Amperage - 25 Amp
Applications - 8.3 X 32 MM
Catalog Number - DF81
Country of Origin - France

Packaging

1 ea

EAN

03389119407106

Part #

188452

Catalog #

DF81

Commercial reference

DF81

12-Digit UPC:

785901911067

Amperage:

25 Amp

Applications:

8.3 X 32 MM

Catalog Number:

DF81

Country of Origin:

France

Depths:

61 mm

ERP_productname:

SQD DF81 FUSEHOLDER 600V 30AMP 1POLE 8.5X13.5MM

Family Brand Name:

Schneider Electric

Heights:

79.5 mm

Size:

17.5 MM,61 MM,79.5 MM

Sub Brand:

TESYS DF

Tc Connection:

SCREW CLAMP TERMINALS 1 1-16 MMA.RIGID- SCREW CLAMP TERMINALS 2 1-6 MMA.RIGID- SCREW CLAMP TERMINALS 1 1-16 MMA.FLEXIBLE WITH OR WITHOUT- SCREW CLAMP TERMINALS 2 1-6 MMA.FLEXIBLE WITH OR WITHOUT

Type:

FUSE CARRIER

Voltage:

400 VAC

Widths:

17.5 mm

SoneparProductId:

SKU_US_29952119

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 25A/500V. To be used with 8.5x31.5mm fuse links up to 25A and short circuit current up to 20kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (8.5x31.5mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, EAC, Marine), Green Premium product (RoHS/REACh). Prop 65: WARNING: Cancer - www.P65Warnings.ca.gov
