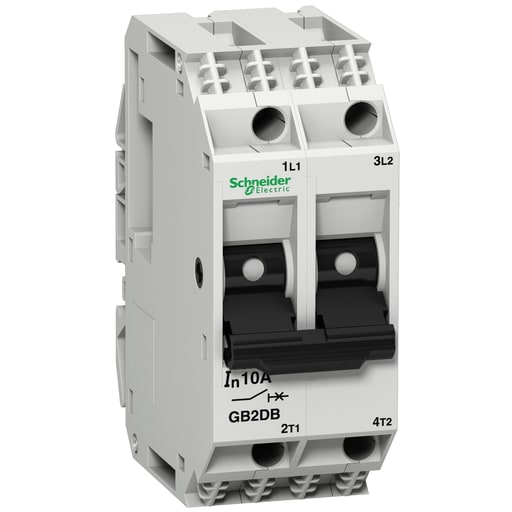

Square-D / Schneider - SQUARED GB2DB08 TeSys GB2 thermal m
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110865434
Applications - Braking Control
Catalog Number - GB2DB08
Country of Origin - France
Depths - 70 mm
Packaging
1 ea
EAN
03389110865431
Part #
251011
Catalog #
GB2DB08
Commercial reference
GB2DB08
12-Digit UPC:
389110865434
Applications:
Braking Control
Catalog Number:
GB2DB08
Country of Origin:
France
Depths:
70 mm
ERP_productname:
SQD GB2DB08 CIRCUIT PROTECTOR
Enclosure:
IP20,UL-NEMA Type Open
Family Brand Name:
Schneider Electric
Heights:
74 mm
Mounting Type:
Clips
Number of Poles:
2 Pole
Sub Brand:
TESYS
Type:
Control Circuit Transformer
Widths:
30 mm
SoneparProductId:
SKU_US_337784512
TeSys GB circuit breaker, 2 poles (2P), 3A/415V, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 40A (13 In) and breaking capacity Icu 3kA@415V. It can also be used for protection of DC loads up to 3A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. It conforms to IEC 60947-1 and IEC 60947-2, Green Premium product (RoHS/REACh). Prop 65: WARNING: Cancer - www.P65Warnings.ca.gov
