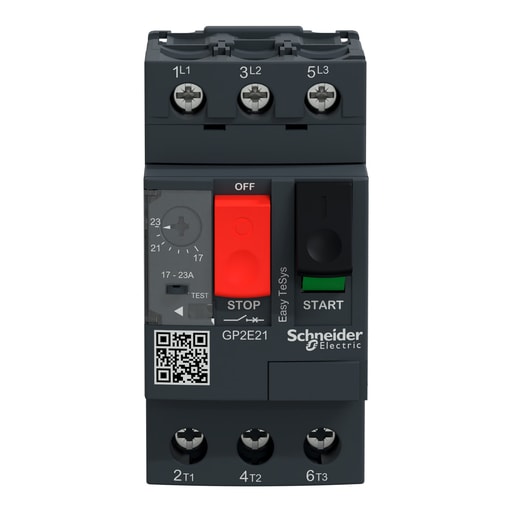

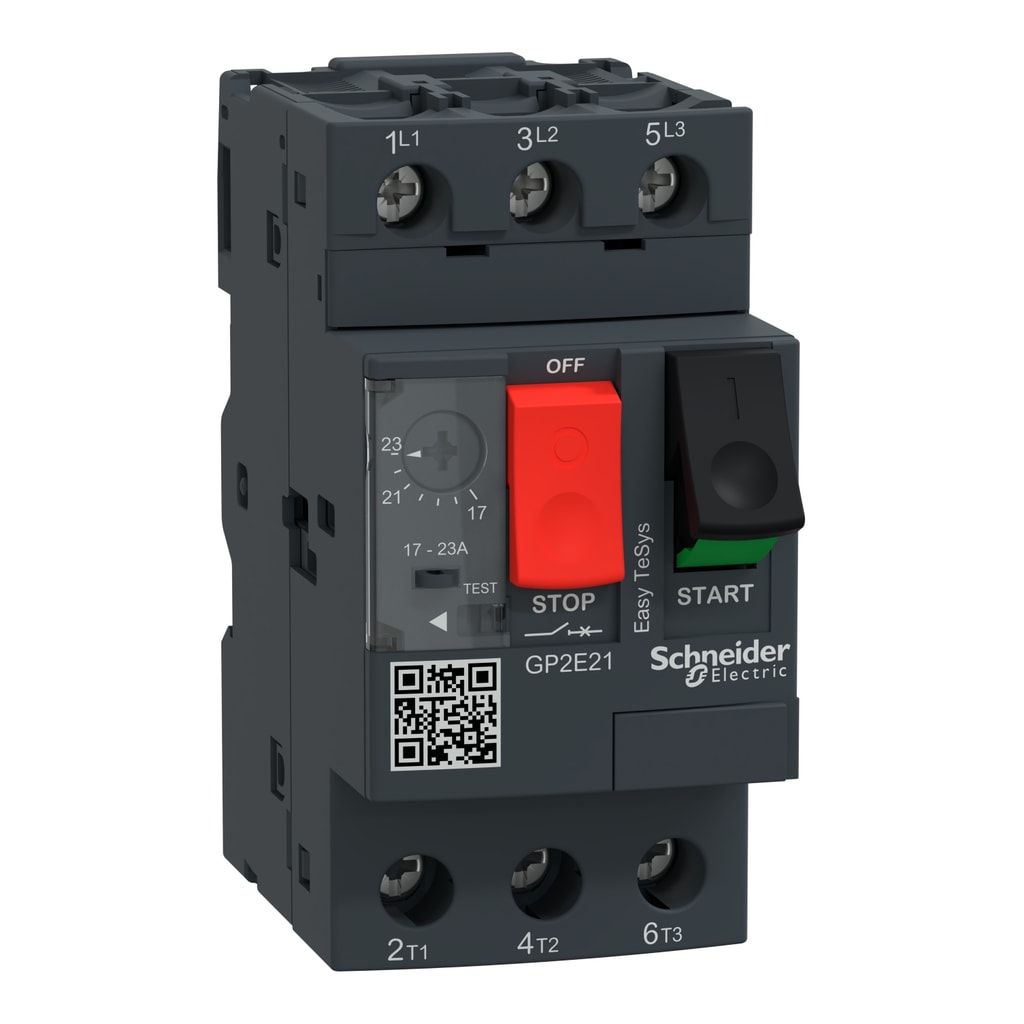

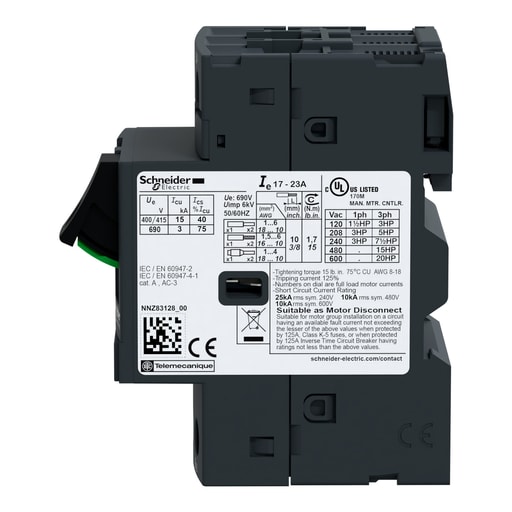

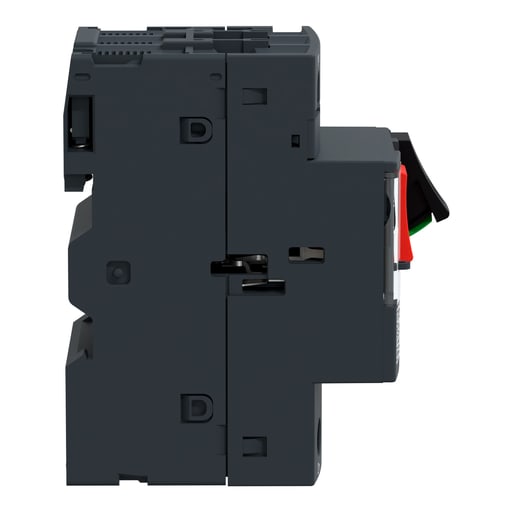

Square-D / Schneider - SQUARED GP2E21 Manual motor control
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606481063468
Catalog Number - GP2E21
Country of Origin - Thailand
Depths - 78.5 mm
ERP_productname - SQD GP2E21 MANUAL MOTOR CONTROLLER, EASY TESYS, 3P, 17-23A, THERMAL MAGNETIC, SCREW CLAMP TERMINALS
Packaging
1 ea
EAN
03606481063465
Part #
419538
Catalog #
GP2E21
Commercial reference
GP2E21
12-Digit UPC:
606481063468
Catalog Number:
GP2E21
Country of Origin:
Thailand
Depths:
78.5 mm
ERP_productname:
SQD GP2E21 MANUAL MOTOR CONTROLLER, EASY TESYS, 3P, 17-23A, THERMAL MAGNETIC, SCREW CLAMP TERMINALS
Family Brand Name:
Schneider Electric
Heights:
89 mm
Widths:
45 mm
SoneparProductId:
SKU_US_530056800
Easy TeSys manual motor controller, 3 poles (3P), 23A/690V, for 3-phase motor applications 9kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GPEFC11 - Cross Sell Products: DPE32B7; DPE32BL; DPE32G7; DPE38G7
