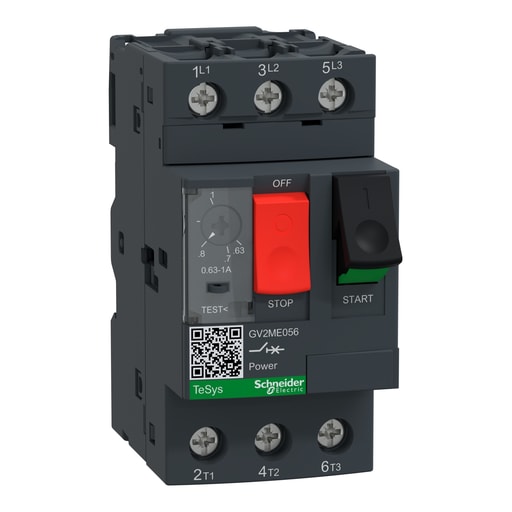

Square-D / Schneider - SQUARED GV2ME056 TeSys Deca Manual

Essential specifications

12-Digit UPC - 891106068670
Applications - MOTOR
Catalog Number - GV2ME056
Color - Gray
Country of Origin - Thailand

Packaging

1 ea

EAN

03389110606867

Part #

186757

Catalog #

GV2ME056

Commercial reference

GV2ME056

12-Digit UPC:

891106068670

Applications:

MOTOR

Catalog Number:

GV2ME056

Color:

Gray

Country of Origin:

Thailand

Depths:

78.5 mm

ERP_productname:

SQD GV2ME056 MANUAL STARTER 600V 1A IEC

Enclosure:

IP20 CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

89 mm

Number of Poles:

3 Pole

Size:

45 MM,78.5 MM,89 MM

Sub Brand:

GV2ME,TESYS,TESYS GV2

Tc Connection:

LUGS-RING TERMINALS 9.5 MM- BARS 6 X 9.5 MM

Type:

CIRCUIT BREAKER

Voltage:

690 Volt AC 50/60 HZ IEC 60947-2

Widths:

45 mm

SoneparProductId:

SKU_US_315737006

TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for 3-phase motor applications 0.25kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.63-1A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by lugs. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GVAE11; GVAN11; GVAD1010; GV1G09; GV2G445; GV2G245; GV2G345; GVAD1001; GV2G05; GVAU385; GV2AF02; GVAS225; GVAU225; LAD311; LAD31; GVAX385; GVAX225; GVAS385; GK2AF01; GVAU115; GVAX115 - Cross Sell Products: LC1D096BD; LC1D096F7; LC1D096B7; LC1D096P7
