Square-D / Schneider - SQUARED GV2ME086 TeSys Deca Manual
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110609311
Amperage - 4 Amp
Applications - MOTOR
Catalog Number - GV2ME086
Color - Gray
Packaging
1 ea
EAN
03389110609318
Part #
186762
Catalog #
GV2ME086
Commercial reference
GV2ME086
12-Digit UPC:
389110609311
Amperage:
4 Amp
Applications:
MOTOR
Catalog Number:
GV2ME086
Color:
Gray
Country of Origin:
Thailand
Depths:
78.5 mm
ERP_productname:
SQD GV2ME086 MANUAL STARTER 600VAC 4AMP IEC
Enclosure:
IP20 CONFORMING TO IEC 60529
Family Brand Name:
Schneider Electric
Heights:
89 mm
Number of Poles:
3 Pole
Size:
45 MM,78.5 MM,89 MM
Sub Brand:
GV2ME,TESYS,TESYS GV2
Tc Connection:
LUGS-RING TERMINALS 9.5 MM- BARS 6 X 9.5 MM
Type:
CIRCUIT BREAKER
Voltage:
690 Volt
Widths:
45 mm
SoneparProductId:
SKU_US_89605701

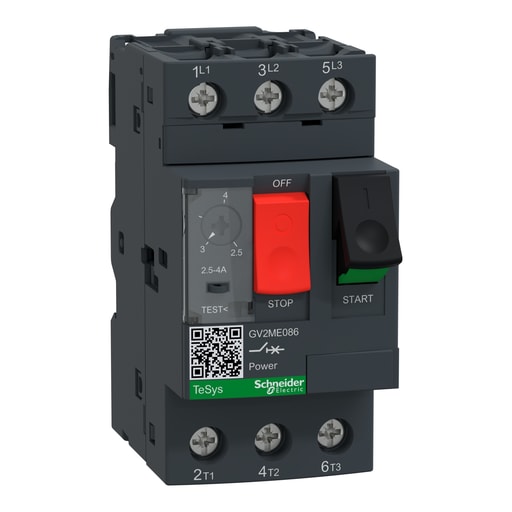

TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 2.5-4A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by lugs. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GVAE11; GVAN11; GVAD1010; GV1G09; GV2G445; GV2G245; GV2G345; GVAD1001; GV2G05; GVAU385; GV2AF02; GVAS225; GVAU225; LAD311; LAD31; GVAX385; GVAX225; GVAS385; GK2AF01; GVAU115; GVAX115 - Cross Sell Products: LC1D096BD; LC1D096F7; LC1D096B7; LC1D096P7
