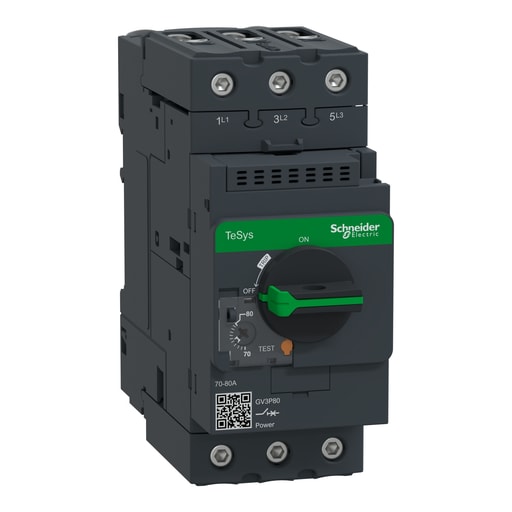

Square-D / Schneider - SQUARED GV3P80 Motor circuit breake
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 064813045689
Catalog Number - GV3P80
Color - Gray
Country of Origin - France
Depths - 136 mm
Packaging
1 ea
EAN
03606481304568
Part #
159168
Catalog #
GV3P80
Commercial reference
GV3P80
12-Digit UPC:
064813045689
Catalog Number:
GV3P80
Color:
Gray
Country of Origin:
France
Depths:
136 mm
ERP_productname:
SQD GV3P80 MANUAL MOTOR PROTECTOR 70-80A
Family Brand Name:
Schneider Electric
Heights:
132 mm
Widths:
55 mm
SoneparProductId:
SKU_US_315988072
TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for 3-phase motor applications 45kW@400V. It provides a thermal-magnetic protection with a thermal setting range 70-80A, magnetic tripping at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 20 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). Compatible Products: GVAE11; GVAN11; GVAE1; GVAE20; GVAD1010; GVAD0110; GVAN20; GVAD1001; GVAU385; GVAS225; GV3G66; GVAU225; GVAS025; GVAD0101; GVAM11; GV3APN01; GV3G264; GVAED101; GVAU226; GVAS385; GV2V03; GVAU415; GVAS226; GV3G364; GVAPA1; GVAU116; GV3APN02; GVAS026; GVAU025; GVAU207; GVAU115; GVAPK12; GV3APN04; GVAS415; GVAS207; GVAU505; GVAS116; GV3APN03 - Cross Sell Products: LC1D80AP7; LC1D80ABNE; LC1D80AF7; LC1D80AKUE; LC1D80AB7; LC1D80AEHE
