Square-D / Schneider - SQUARED ILA2K571TC2A0 integrated dr

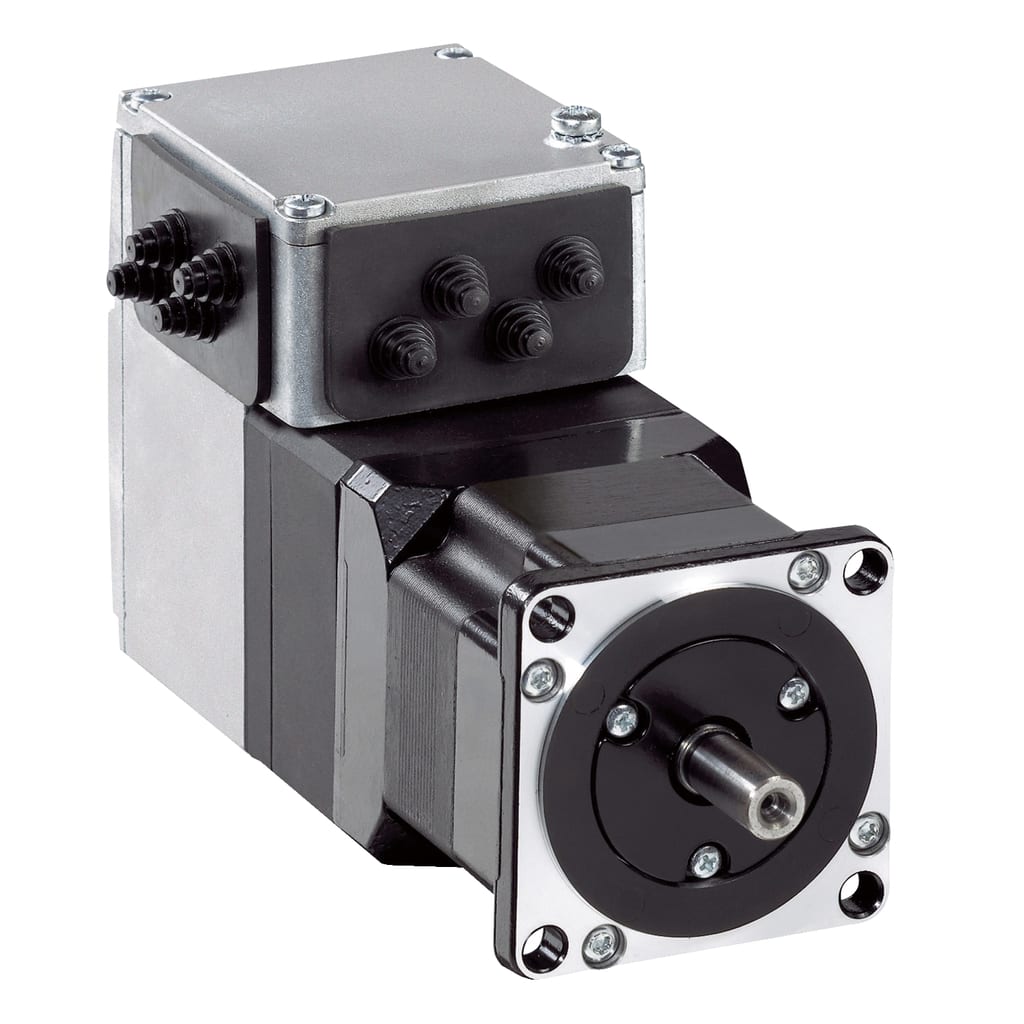

This product is part of the Lexium ILA range, an offer of motion integrated drives for motion control. The motion integrated drive with a 6-pole AC synchronous servo motor features an integrated EtherNet/IP communication interface and untapped shaft without holding brake. It is an equipped with a multi-turn encoder (16,384 points/turn x 4096 turns). The AC synchronous servo motor with a rated supply voltage of 24V, 48V DC, a peak current consumption of 11000mA and a nominal speed of 7000RPM at 48V. The shaft dimensions are 9mm (diameter) x 20mm (length). It is furnished with industrial connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. Its dimensions are 189.3mm (length) x 57mm (width) and the centering collar dimensions are 1.6mm (depth) x 50mm (diameter) with 66.6mm mounting hole. It weighs 1.4kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CE, TUV, CUL and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, EN/IEC 50178, EN 61800-3 2001-02, IEC 61800-3, Ed 2 and EN 50347 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: GBX060003K; VW3L10000N10; VW3L10222; ESEEXPCZZSPAZZ; GBX060004K; VW3L10111; VW3L1E001N01; ESECAPCZZSPAZZ; GBX060005K; VW3L30010R30; VW3L40300; GBX060008K; VW3L30001R30; VW3L40020; GBX060009K; VW3L40420; GBX060012K; VW3L50300; GBX060015K; VW3L5K000; GBX060016K; GBX060020K; GBX060025K; GBX060040K; GBY060003K; GBY060004K; GBY060005K; GBY060008K; GBY060012K; GBY060020K; GBY060040K; GBK0600570A
