Square-D / Schneider - SQUARED K10D004QCH Cam stepping swi

CopyCopy
Square-D / Schneider - SQUARED K10D004QCH Cam stepping swi

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389110076571

  • Actuator - BLACK HANDLE

  • Amperage - 10 Amp 24 V RESISTIVE-0.3 Amp 220 V RESISTIVE-0.7 Amp 110 V RESISTIVE,10 Amp 400 V AC-1-10 Amp 400 V AC-21A-3 Amp 240 V AC-15-6 Amp 120 V AC-15

  • Applications - 0.33 HP 110/120 V AC, 1 PHASE-0.75 HP 220/240 V AC, 1 PHASE

  • Catalog Number - K10D004QCH

Packaging

  • 1 ea

EAN

03389110076578

Part #

267320

Catalog #

K10D004QCH

Commercial reference

K10D004QCH

12-Digit UPC:

389110076571

Actuator:

BLACK HANDLE

Amperage:

10 Amp 24 V RESISTIVE-0.3 Amp 220 V RESISTIVE-0.7 Amp 110 V RESISTIVE,10 Amp 400 V AC-1-10 Amp 400 V AC-21A-3 Amp 240 V AC-15-6 Amp 120 V AC-15

Applications:

0.33 HP 110/120 V AC, 1 PHASE-0.75 HP 220/240 V AC, 1 PHASE

Catalog Number:

K10D004QCH

Country of Origin:

Austria

ERP_productname:

SQD K10D004QCH ROTARY SWITCH 1P 5.6A, 230VAC, 45DEG

Family Brand Name:

Schneider Electric

Heights:

30 mm

Number of Poles:

1 Pole

Size:

30 MM,30 MM,88 MM

Sub Brand:

K10

Tc Connection:

CAPTIVE SCREW CLAMP TERMINALS 2 X 1.5 MMA.

Type:

Stepping switch;Complete cam switch

Wattage:

370 Watt AC-23 Amps 110/120 Volt 1 Phase-750 Watt AC-23 Amps 220/240 Volt 1 Phase

Widths:

30 mm

SoneparProductId:

SKU_US_74021680

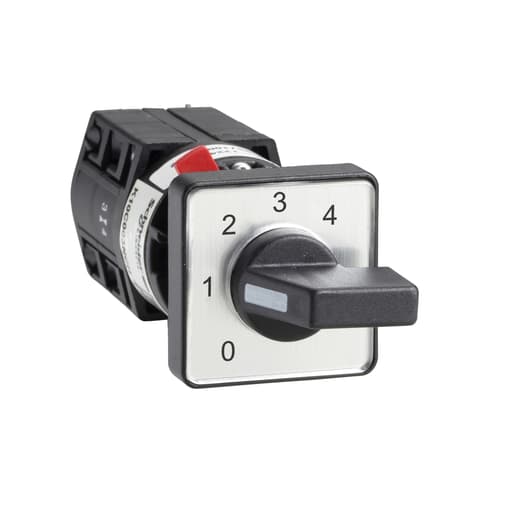

This Harmony K10 cam stepping switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - 1 - 2 - 3 - 4" marking to indicate the position of the switch. This metal head cam stepping switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 30 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
