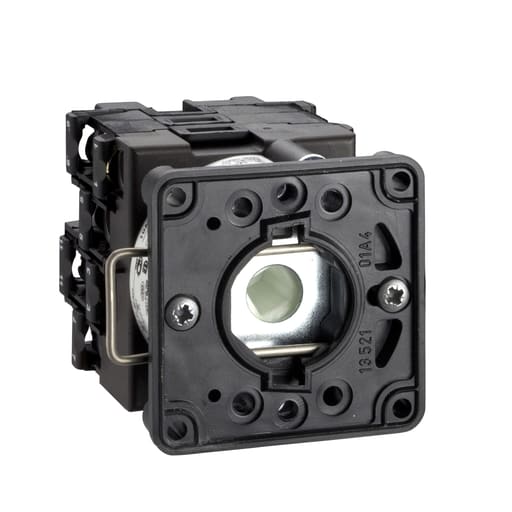

Square-D / Schneider - SQUARED K2C003H Cam switch body, Ha

12-Digit UPC:

785901668541

Amperage:

8 Amp 400 V AC-3 3 PHASE IEC 947-3-3 Amp 400 V AC-15 IEC 947-5-1-4 Amp 230 V AC-15 IEC 947-5-1-10.8 Amp 400 V AC-23A 3 PHASE IEC 947-3-14.6 Amp 230 V AC-23A 3 PHASE IEC 947-3-4.7 Amp 690 V AC-3 3 PHASE IEC 947-3-6.4 Amp 690 V AC-23A 3 PHASE IEC 947-3-6.5 Amp 500 V AC-3 3 PHASE IEC 947-3-8.3 Amp 230 V AC-3 3 PHASE IEC 947-3-8.9 Amp 500 V AC-23A 3 PHASE IEC 947-3-2 Amp 500 V AC-15 IEC 947-5-1

Catalog Number:

K2C003H

Country of Origin:

Czechia

ERP_productname:

SQD K2C003H CAM SWITCH CONTACT BLOCK 300V 12A T-K

Family Brand Name:

Schneider Electric

Number of Poles:

3 Pole

Short Circuit Current:

10000 A

Short Circuit Current Ratng:

10000 A

Sub Brand:

K2

Tc Connection:

CAPTIVE SCREW CLAMP TERMINALS FLEXIBLE 2 X 1.5 MMA.-CAPTIVE SCREW CLAMP TERMINALS SOLID 1 X 2.5 MMA.

Type:

Switch;Cam switch body

Wattage:

1300 Watt AC-3 230 Volt 1 Phase IEC 947 - 3-5500 Watt AC-23 Amps 400 Volt 3 Phase IEC 947 - 3-5500 Watt AC-23 Amps 500 Volt 3 Phase IEC 947 - 3-5500 Watt AC-23 Amps 690 Volt 3 Phase IEC 947 - 3-8000 Watt AC-21 230 Volt 3 Phase IEC 947 - 3-14000 Watt AC-21 400 Volt 3 Phase IEC 947 - 3-17000 Watt AC-21 500 - 660 Volt 3 Phase IEC 947 - 3-2200 Watt AC-3 230 Volt 3 Phase IEC 947 - 3-2200 Watt AC-3 400 Volt 1 Phase IEC 947 - 3-4000 Watt AC-23 Amps 230 Volt 3 Phase IEC 947 - 3-4000 Watt AC-3 400 Volt 3 Phase IEC 947 - 3-4000 Watt AC-3 500 Volt 3 Phase IEC 947 - 3-4000 Watt AC-3 690 Volt 3 Phase IEC 947 - 3

SoneparProductId:

SKU_US_32133253
