Square-D / Schneider - SQUARED KAF3PZ Handles and front pl
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110804785
Actuator - BLACK
Applications - V5;V6
Catalog Number - KAF3PZ
Country of Origin - Czechia
Packaging
1 ea
EAN
03389110804782
Part #
321173
Catalog #
KAF3PZ
Commercial reference
KAF3PZ
12-Digit UPC:
389110804785
Actuator:
BLACK
Applications:
V5;V6
Catalog Number:
KAF3PZ
Country of Origin:
Czechia
ERP_productname:
SQD KAF3PZ HANDLES AND FRONT PLATES,TESYS CONTROL,BLACK HANDLE,BLACK FRONT,1-3 PADLOCKING,4 SCREWS FIXING,FOR V5/V6
Enclosure:
IP65
Family Brand Name:
Schneider Electric
Heights:
90 mm
Size:
90 MM,90 MM,90 X 90 MM
Sub Brand:
KAF3
Type:
Rotary handle
Widths:
90 mm
SoneparProductId:
SKU_US_31951451

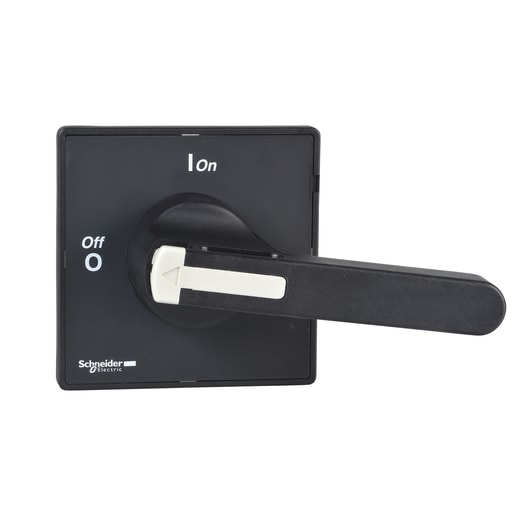

KAF3PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a black long padlockable handle with a black 90x90mm front plate for mounting on door with 4 screw fixing. It operates V5 and V6 switch bodies directly or through a shaft extension. Intended for main switch usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: KZ74; VZ18; VZ31; KZ81 - Cross Sell Products: V5; V6
