Square-D / Schneider - SQUARED LA9G3712 Spreader Kit,TeSys
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606481916627
Catalog Number - LA9G3712
Country of Origin - China
Depths - 85 mm
ERP_productname - SQD LA9G3712 TERMINAL ADAPTER FOR BOX CON 3P G265-500
Packaging
1 ea
EAN
03606481916624
Part #
268304
Catalog #
LA9G3712
Commercial reference
LA9G3712
12-Digit UPC:
606481916627
Catalog Number:
LA9G3712
Country of Origin:
China
Depths:
85 mm
ERP_productname:
SQD LA9G3712 TERMINAL ADAPTER FOR BOX CON 3P G265-500
Family Brand Name:
Schneider Electric
Heights:
6 mm
Widths:
55 mm
SoneparProductId:
SKU_US_390528669

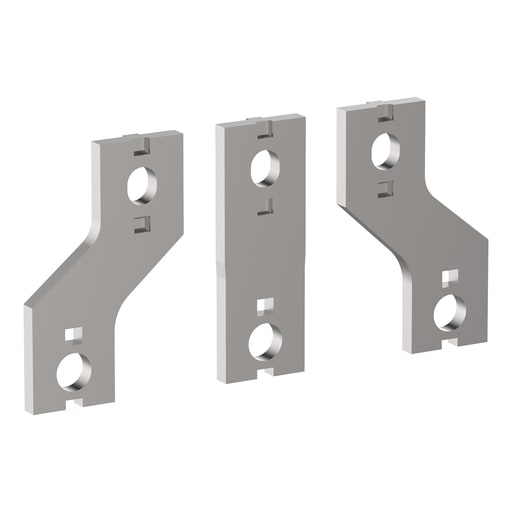

These accessories are terminal adapters for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch between poles from 45mm to 70mm. The rated current is up to 500 A. It can cover -25.C to 60.C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach). Prop 65: WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: LC1G265BEEA; LC1G330BEEA; LC1G400EHEN; LC1G500KUEN - Cross Sell Products: LR9G500
